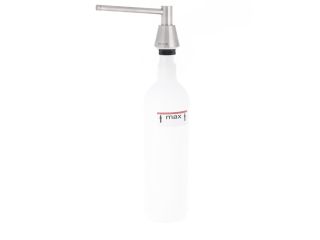

CONE countertop-mounted liquid soap dispenser 1000 ml, brushed (matt)

symbol DWM101

Show description

Description


- soap refilled from a canister
- tank capacity 1000 ml
- made of brass plated with brushed nickel (matt)
- intended for installation in the countertop by the washbasin
- maximum thickness of the countertop that allows the installation of the dispenser is 55 mm
- required diameter of the hole in the countertop is 20 ÷ 23 mm
- the dispenser can be mounted as an element of the central dosing system


length of the swivel spout = 12.5 cm
height above the countertop = 7 cm
total height = 41 cm
tank diameter = 7.5 cm

Matching soaps: M2B, M2C, M2N, M2R, M3T, M3ZA, M3Z, M3X, M4A, M4, M8A, M8, M5, M6A, M6, M7L, M7S, M7B

Technical parameters

height

41 cm

diameter

8 cm

tank capacity

1000 ml

CONE countertop-mounted liquid soap dispenser 1000 ml, brushed (matt)
