MERIDA MACHFLOW WHITE LINE hand dryer, white

symbol EIB131

Show description

Description

- nominal power 420 W - 1500 W
- automatically activated by a proximity sensor
- the motor and the heater power can be pre-set
- setting the minimum motor and heater parameters reduces the power to 530 W, and the sound power level to 68 dB
- energy-saving - the heater can be switched off, depending on the settings of the parameters, the power consumption drops to 420 - 1100 W, and then the dryer dries with unheated air
- the dryer can be equipped with the HEPA filter that purifies the air and removes the airborne particles
- the filter is sold separately - available in the offer as EAA130
- the HEPA filter shall be periodically replaced
- dries with a powerful stream of warm air
- very short dry time
- housing made of white-coated stainless steel
- a blinded hole in the housing for possible connection of a power cord plug

Replaceable parts: EAA130

Technical parameters

material

powder-coated steel, white

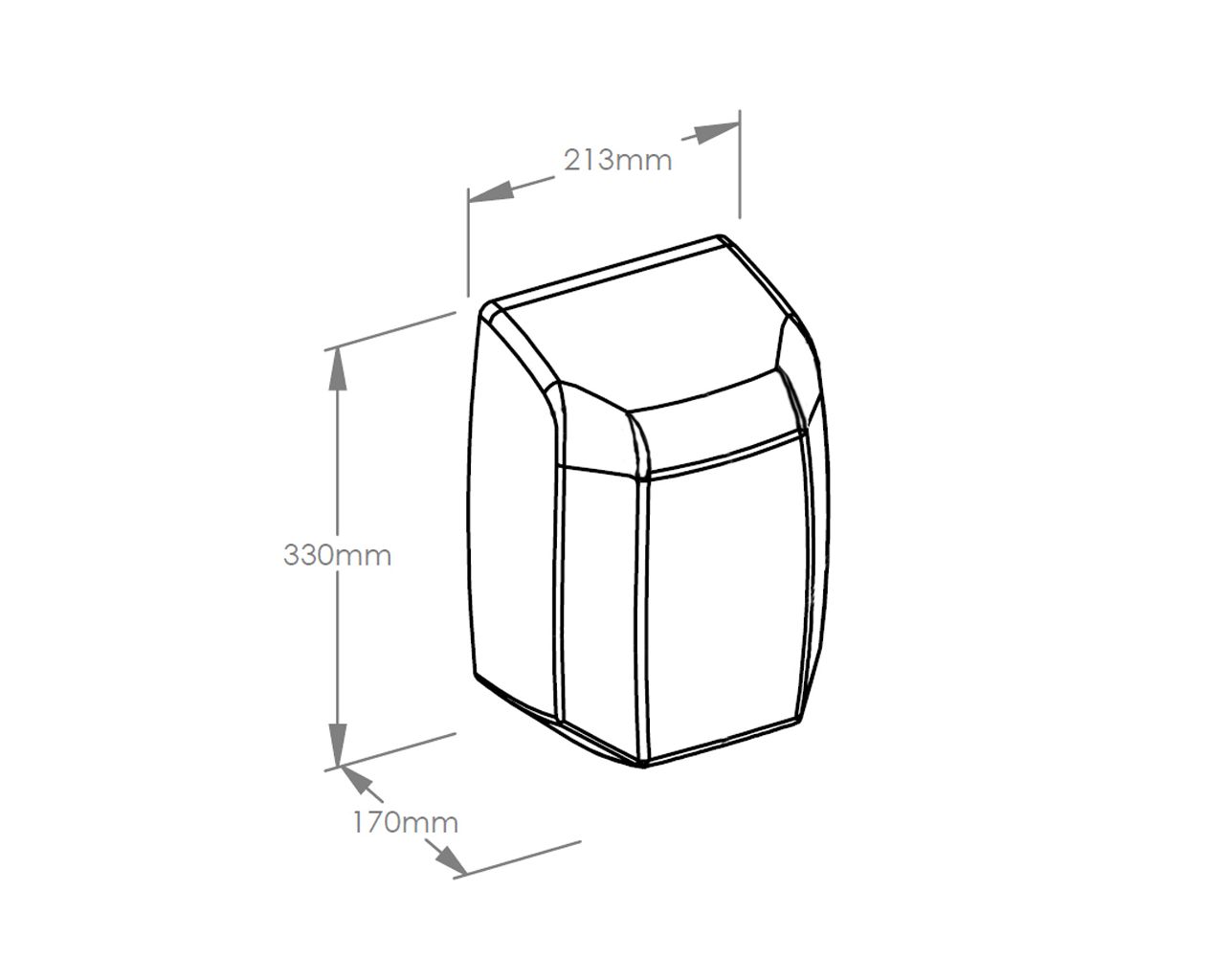

height

33 cm

width

21,3 cm

depth

17 cm

nominal power

420 - 1500 W

motor power

420 - 1100 W

heater power

110 - 400 W

power supply

220V-240C / 50Hz-60Hz

motor speed

19000 - 30000 r/min

power consumption

3,2 - 6,5 A

air temperature

35 - 45 ºC

Fire protection class

Class I

dry time

8 - 10 s

noise level

68-75 dB

air speed

190-480 km/h

Ingress Protection Rating

IP23

operating airflow

2,93 - 3,16 m³/min

weight

5,1 kg
