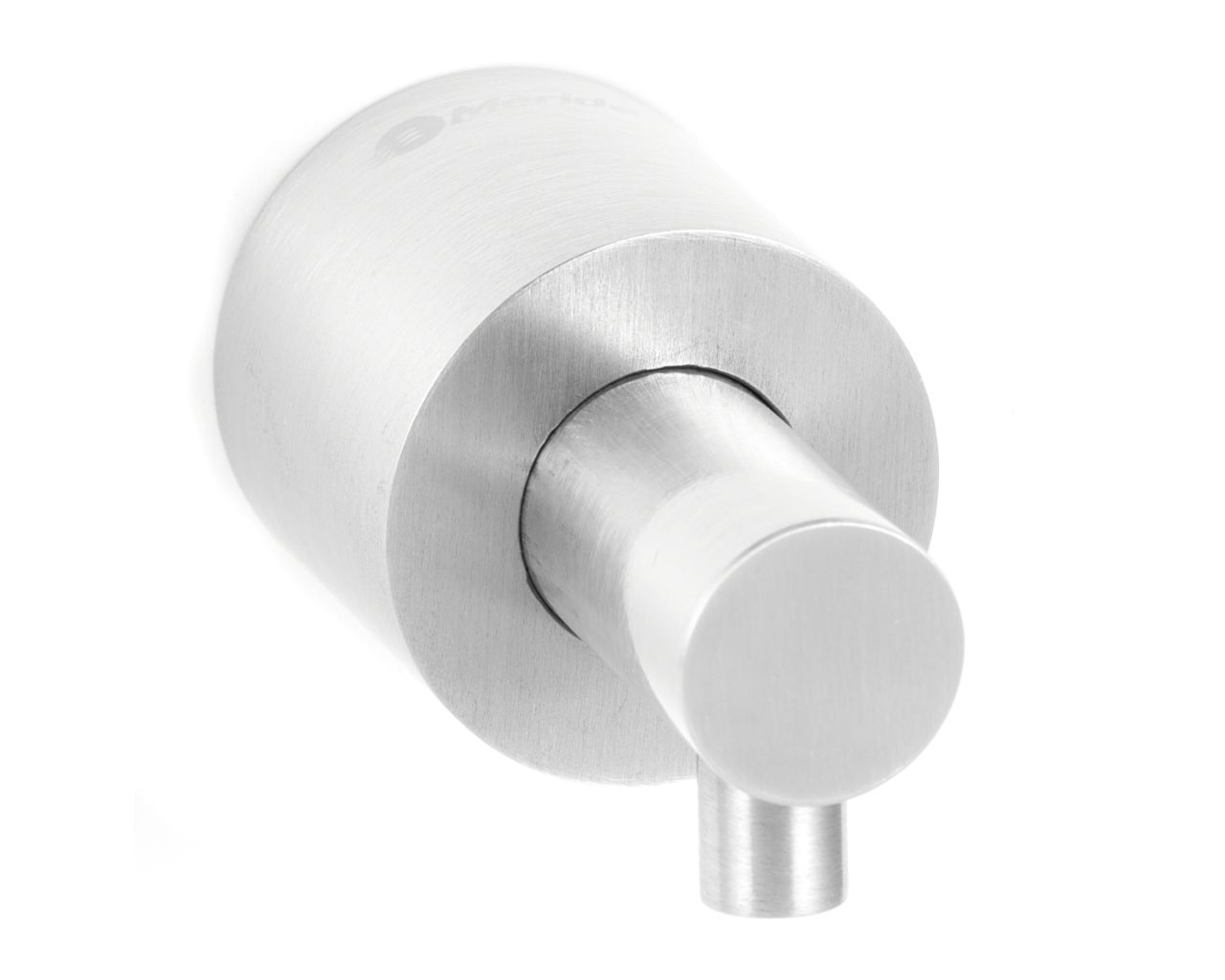

Wall-mounted liquid soap dispenser 1000 ml, brass pump with chrome finish - cylinder (satin version)

symbol DWM104

Show description

Description

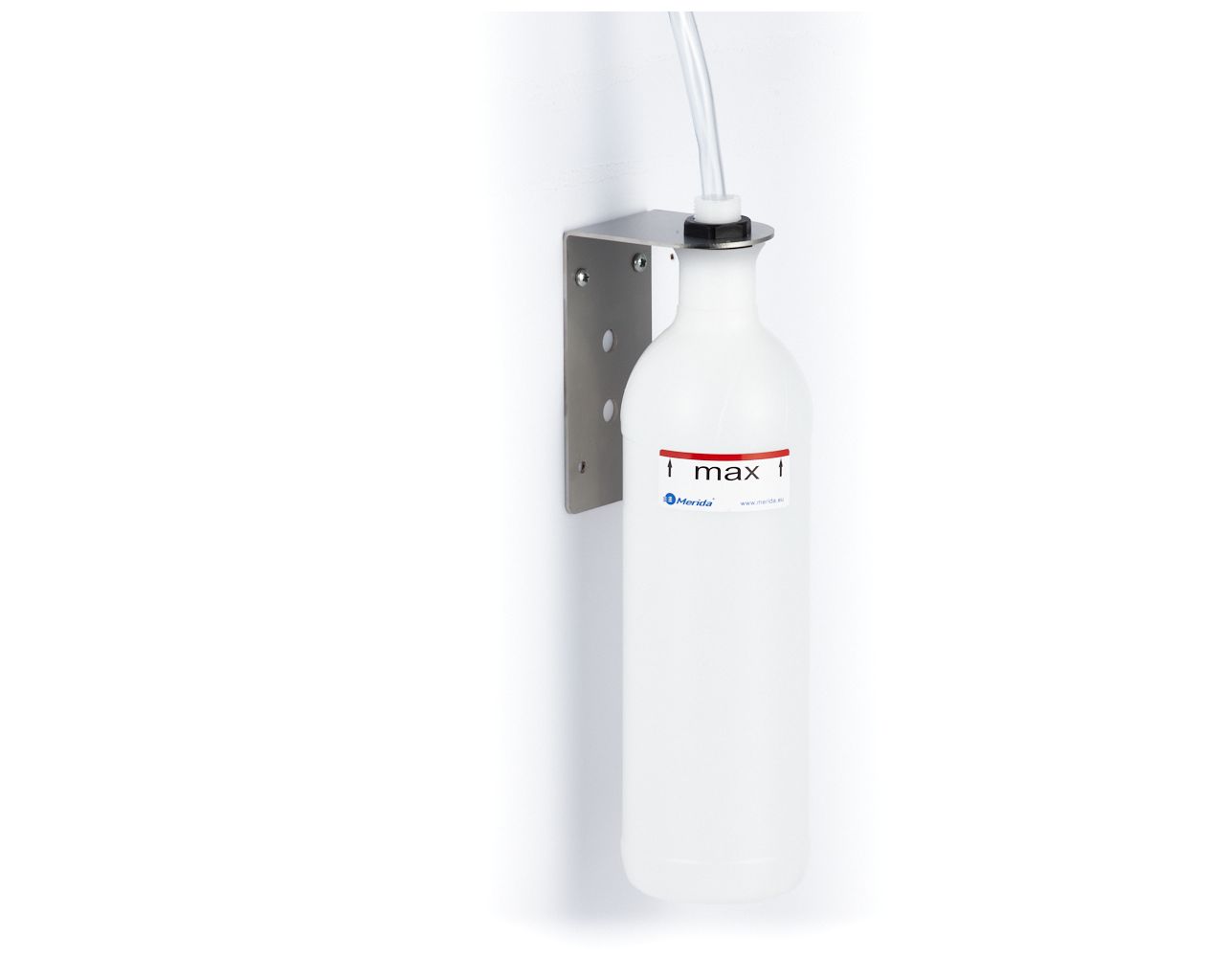

- soap tank capacity 1 l - any tank capacity is possible

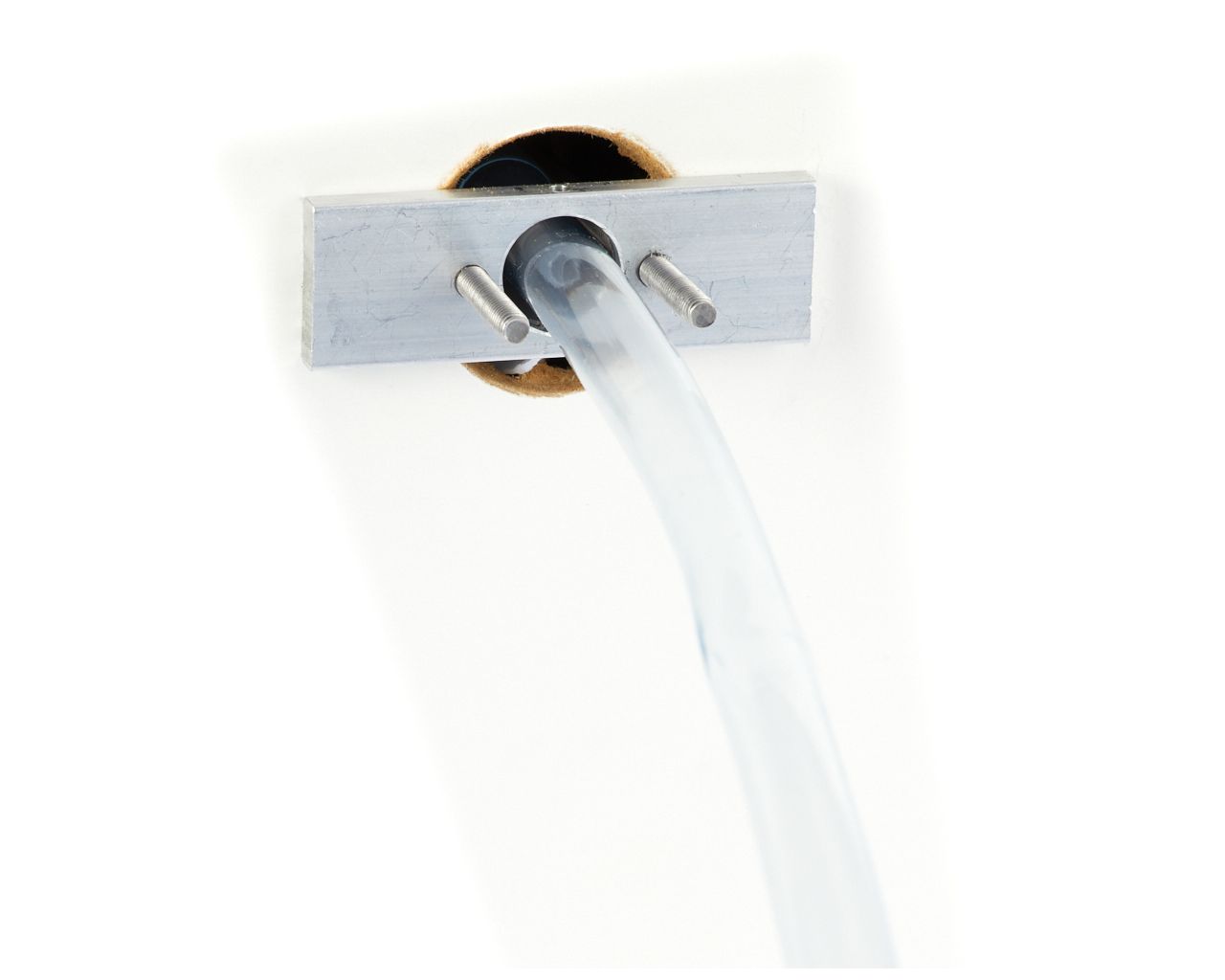

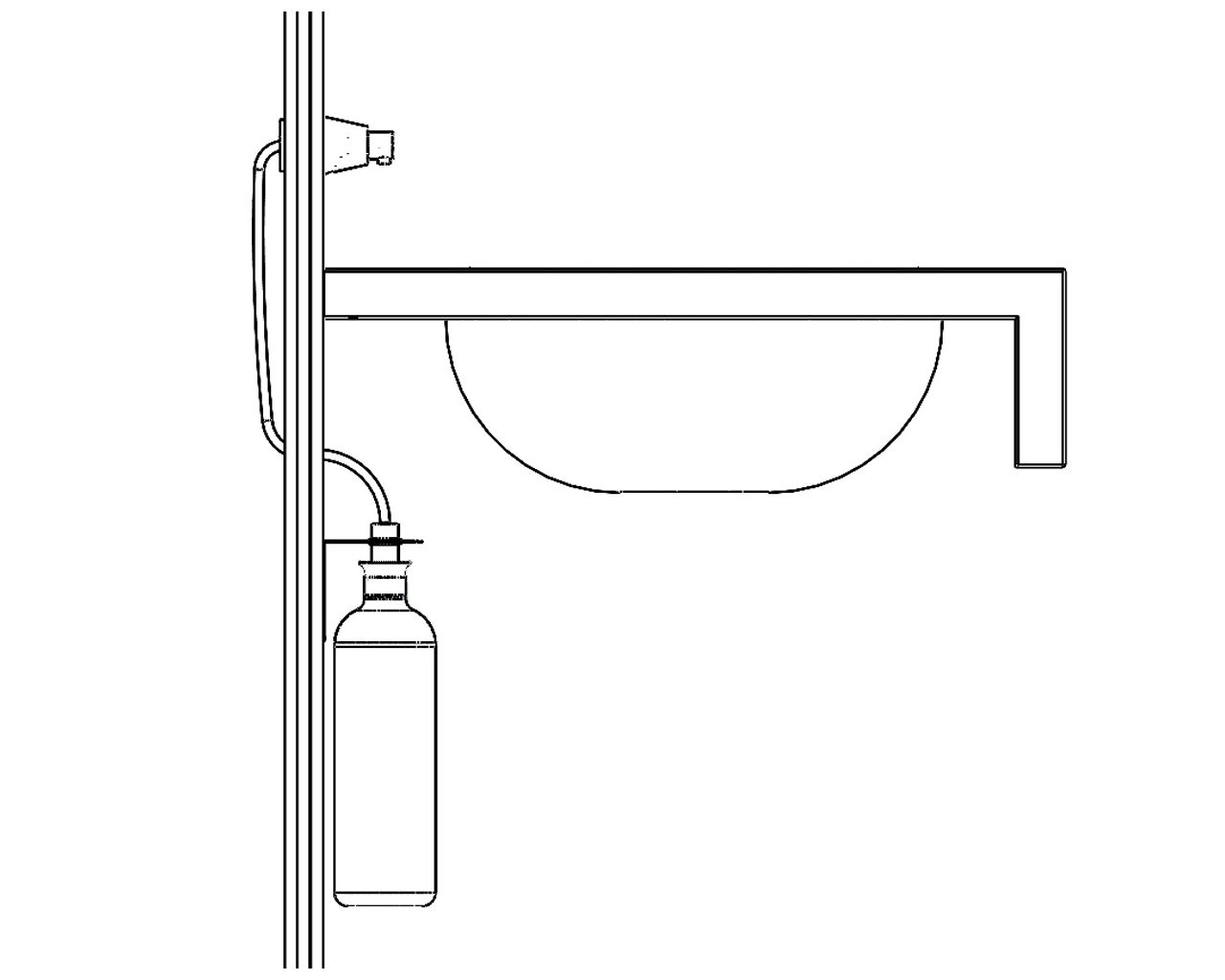

- soap tank can be placed anywhere - length of supply hose max 190 cm

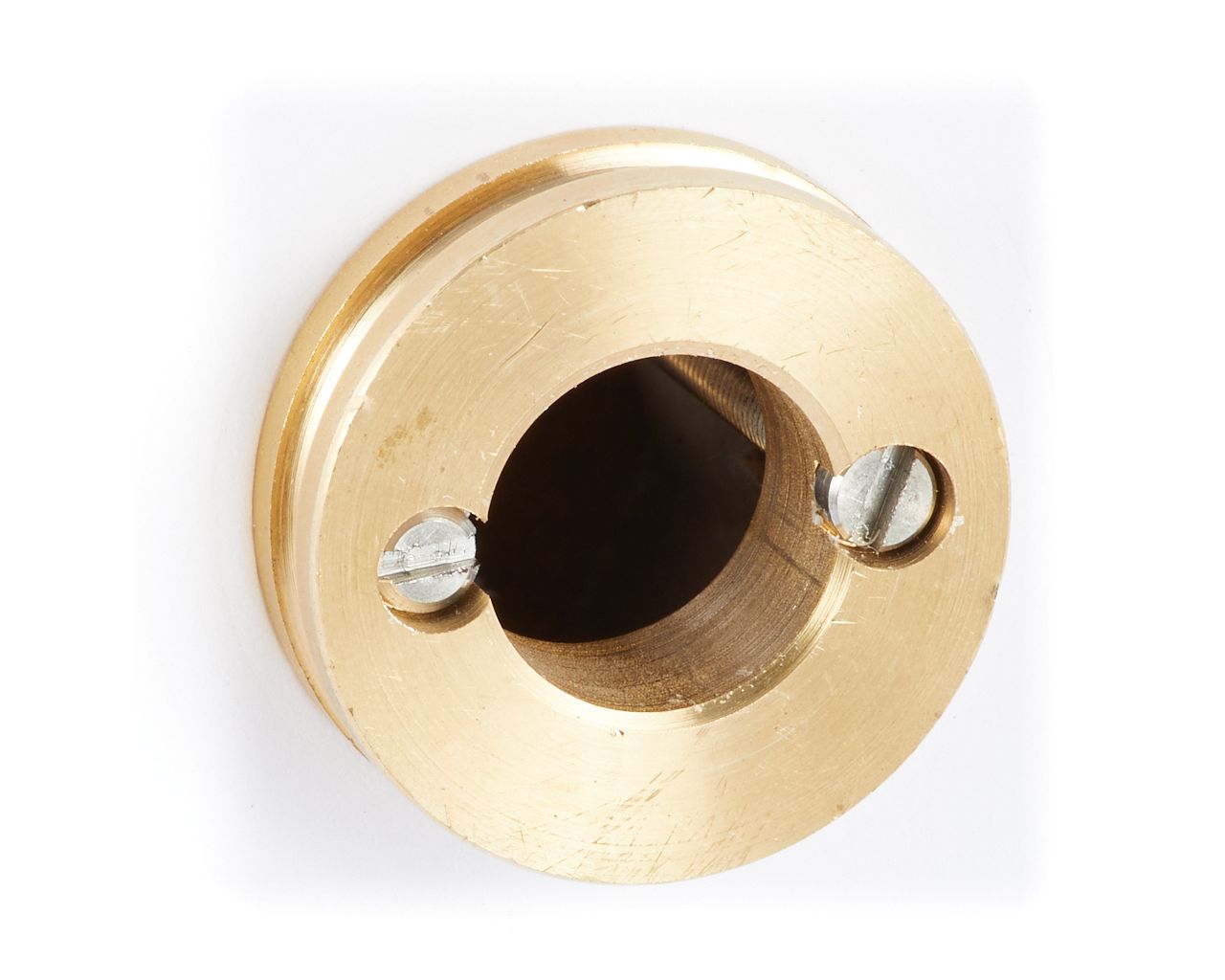

- front or rear wall mounting
- for proper installation, it's necessary to maintain 'empty space' behind the wall
- required wall opening 26-27 mm
- glossy version (in DWP) / matt version (in DWM)
- required service access from the rear of the wall

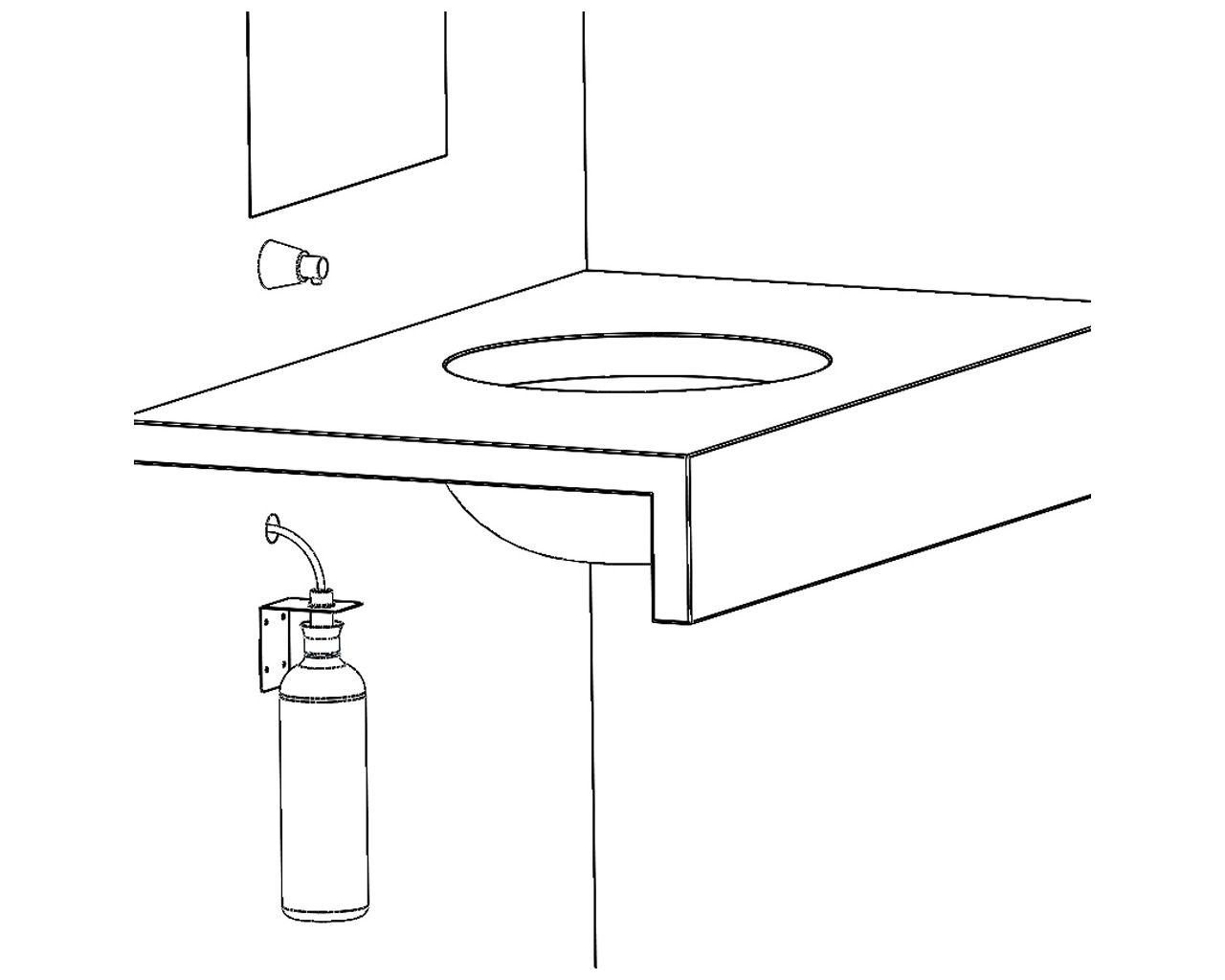

- suggested installation: as a dispenser in the central dosing system

Matching soaps: M2B, M2C, M2N, M2R, M3T, M3ZA, M3Z, M3X, M4A, M4, M8A, M8, M5, M6A, M6, M7L, M7S, M7B

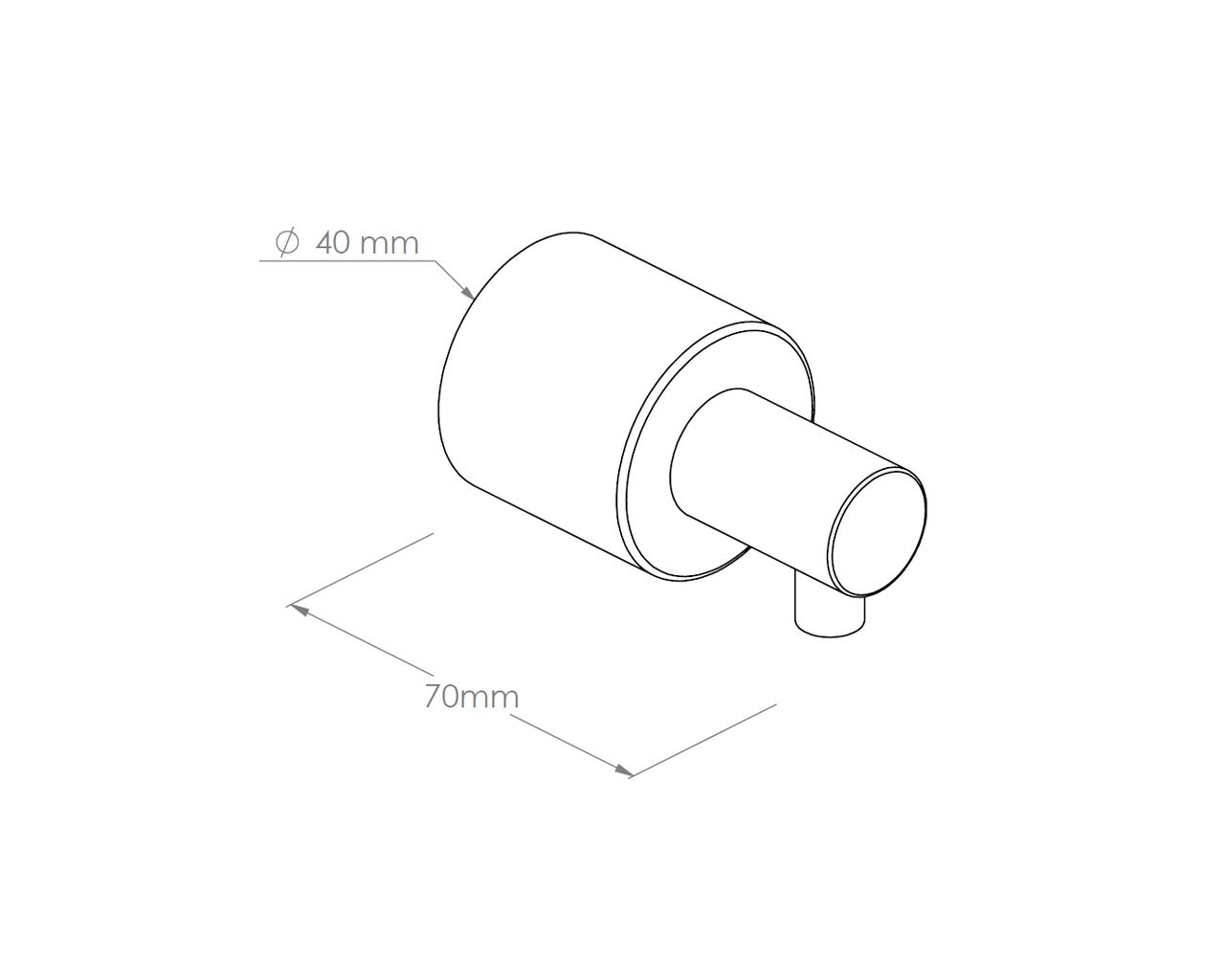

Technical parameters

diameter

4 cm

depth

6,8 cm
