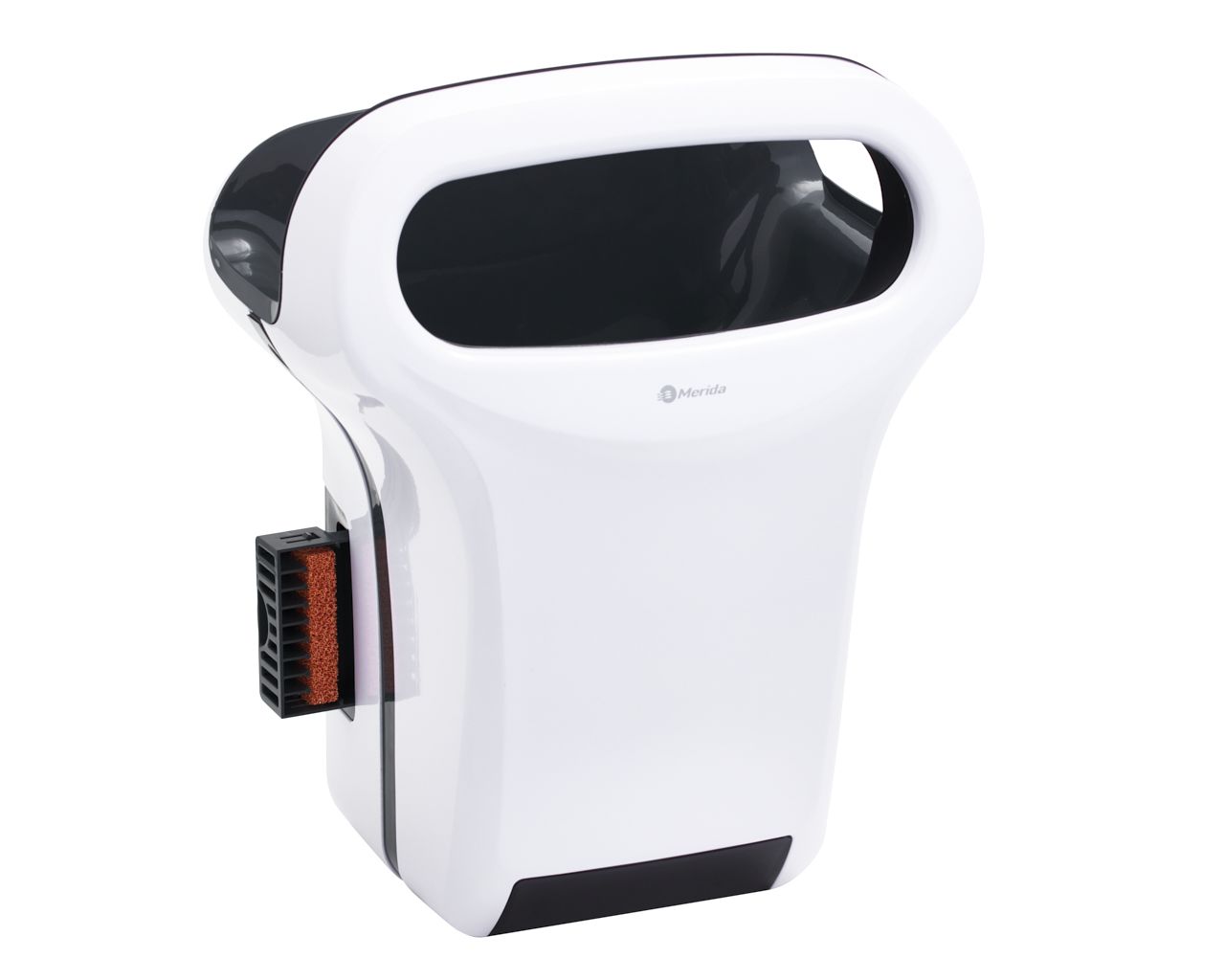

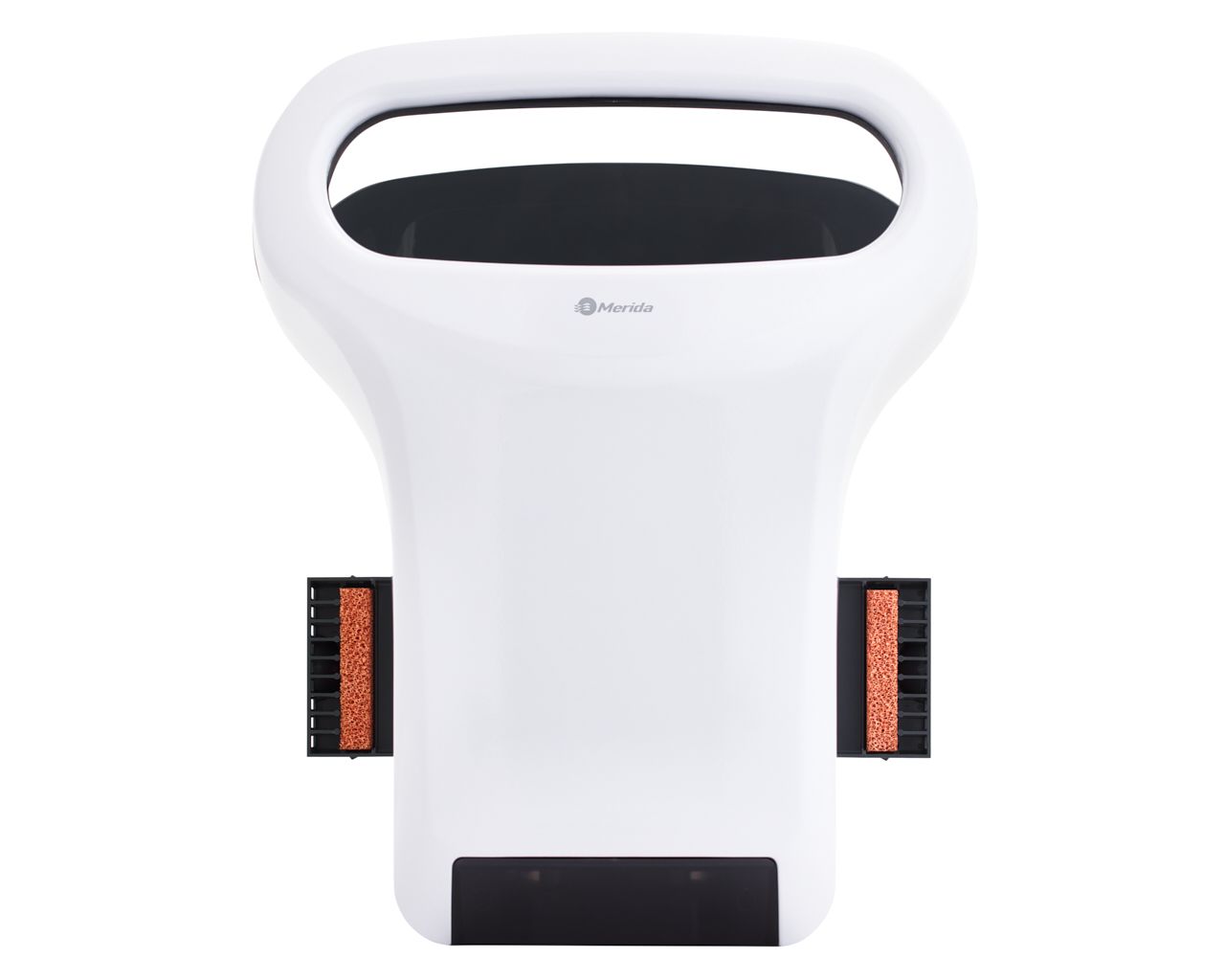

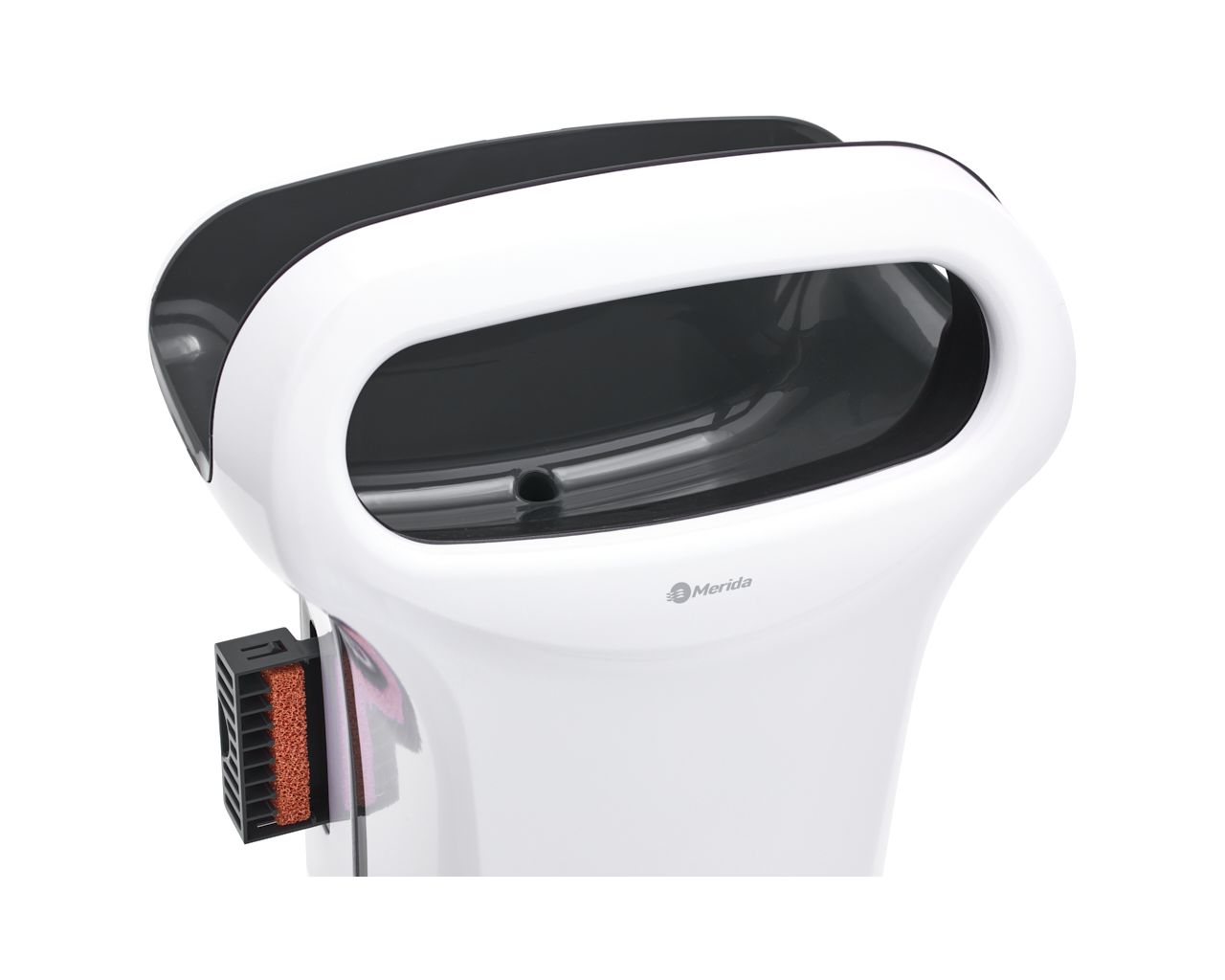

MERIDA EXP'AIR hand dryer, white

symbol EIB301

Show description

Description

- automatically activated by an infrared sensor
- equipped with a high-speed brush motor
- white housing made of aluminium, other elements of the device made of high-quality ABS plastic
- the dryer is highly resistant to mechanical damage and moisture

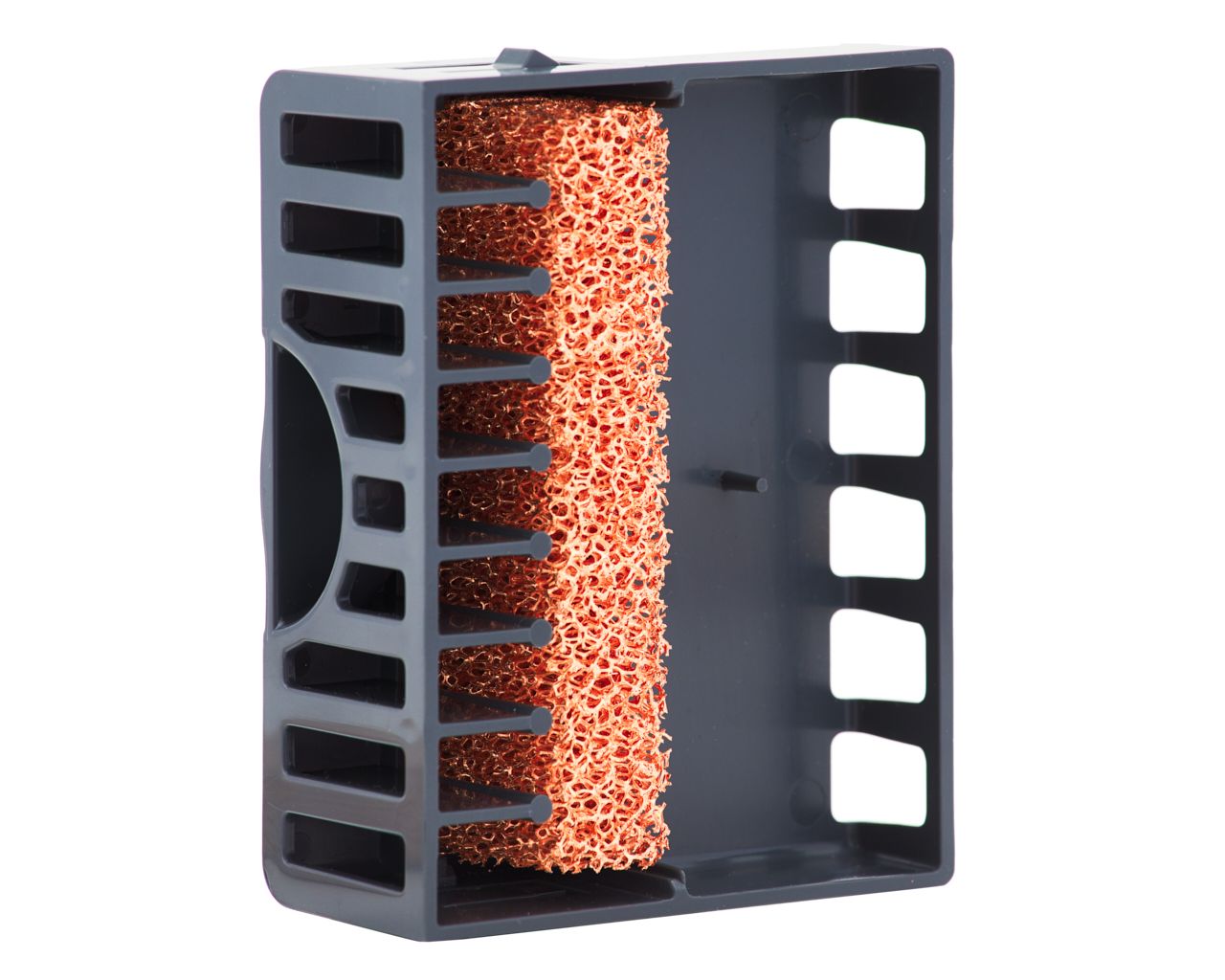

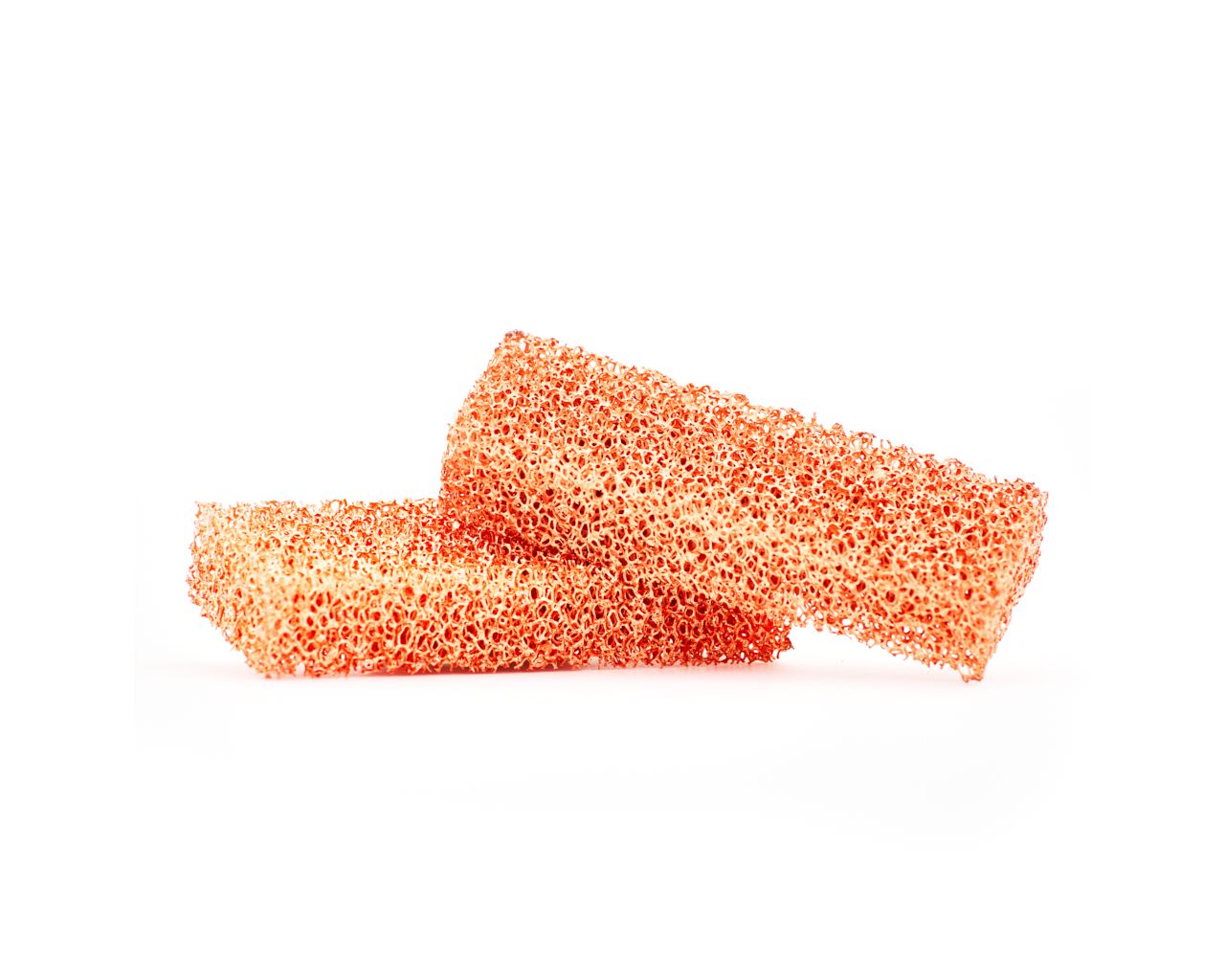

- equipped with two copper filters that do not need to be replaced; they only need to be cleaned
- the water is drained into a special tank
- it is also possible to connect the overflow outflow from the tank directly to the sewage system
- short dry time (10-15 seconds)
- SE-96056 certificate (Ingress Protection Rating - IP44), which allows it to be mounted directly at water connections
- compact size and high durability of components (motor, impeller) make it a universal device recommended for small and large restrooms with high traffic

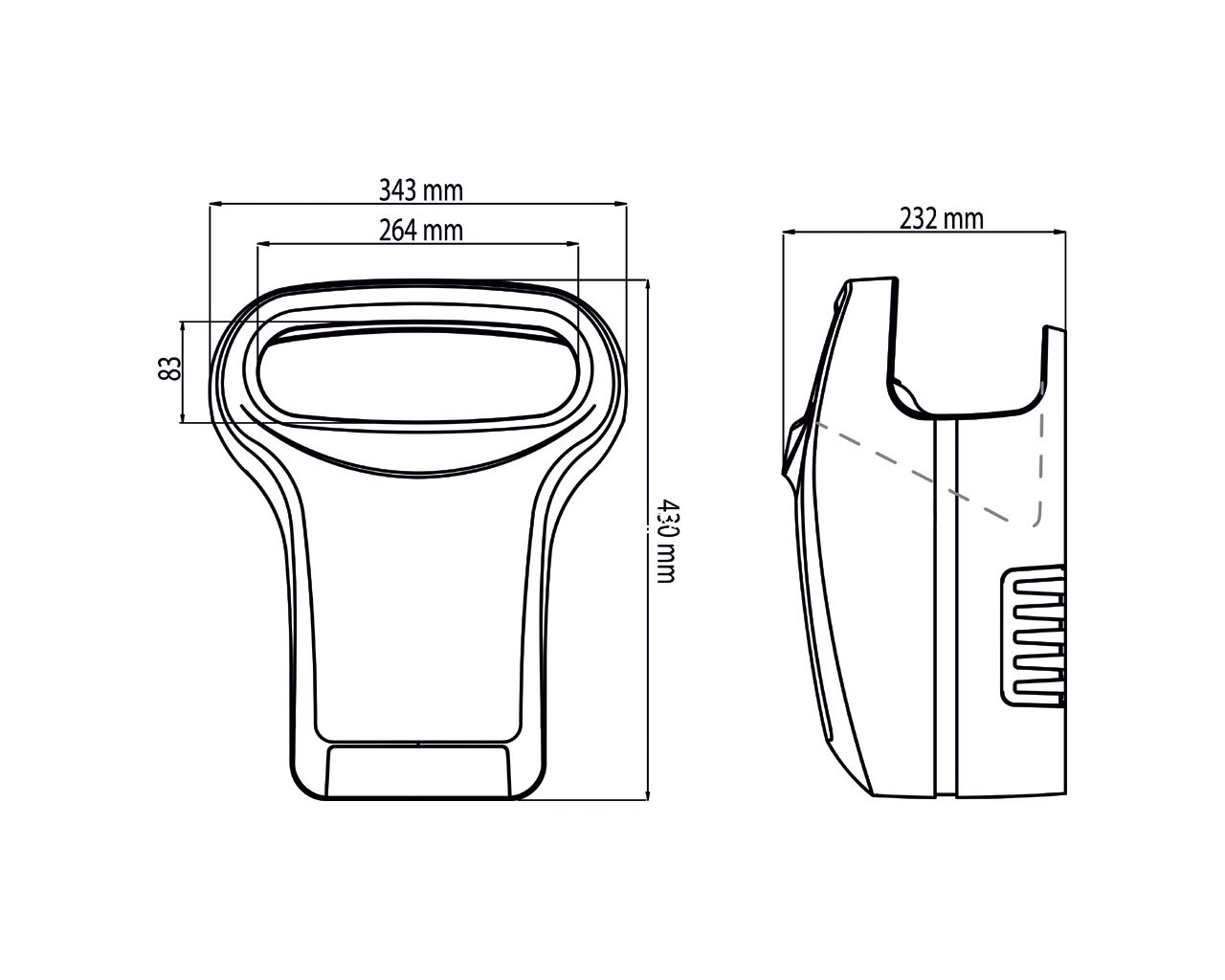

Technical parameters

height

43 cm

width

34,4 cm

depth

23,2 cm

material

aluminium, ABS

power supply

220V-240V / 50Hz-60Hz

nominal power

800 W

motor power

800 W

motor speed

26500 r/min

air temperature

40 ºC

Fire protection class

Class II

dry time

10-15 s

noise level

75 dB

air speed

396 km/h

operating airflow

2,33 m³/min

Ingress Protection Rating

IP44

weight

7 kg
