MERIDA MACHFLOW - automatic hand dryer, 420-1150w, steel cover with satin finish

symbol EIM130

Show description

Description

- nominal power 420 W - 1500 W
- automatically activated by a proximity sensor
- the motor and heater power can be pre-set
- the minimum parameter setting for the motor and the heater reduces the power to 530 W and the noise level to 68 dB
- energy-saving - the heater can be switched off, depending on the parameter setting, power consumption drops to 420 - 1100 W, the dryer dries then with unheated air
- dries with a powerful stream of warm air
- very short dry time
- the dryer can be equipped with a HEPA filter that purifies the air and removes airborne particles
- the filter is purchased separately - available in the offer as EAA130
- the HEPA filter shall be periodically replaced
- matt stainless-steel housing
- a blinded hole in the housing for possible connection of a power cable with a plug

Replaceable parts: EAA130

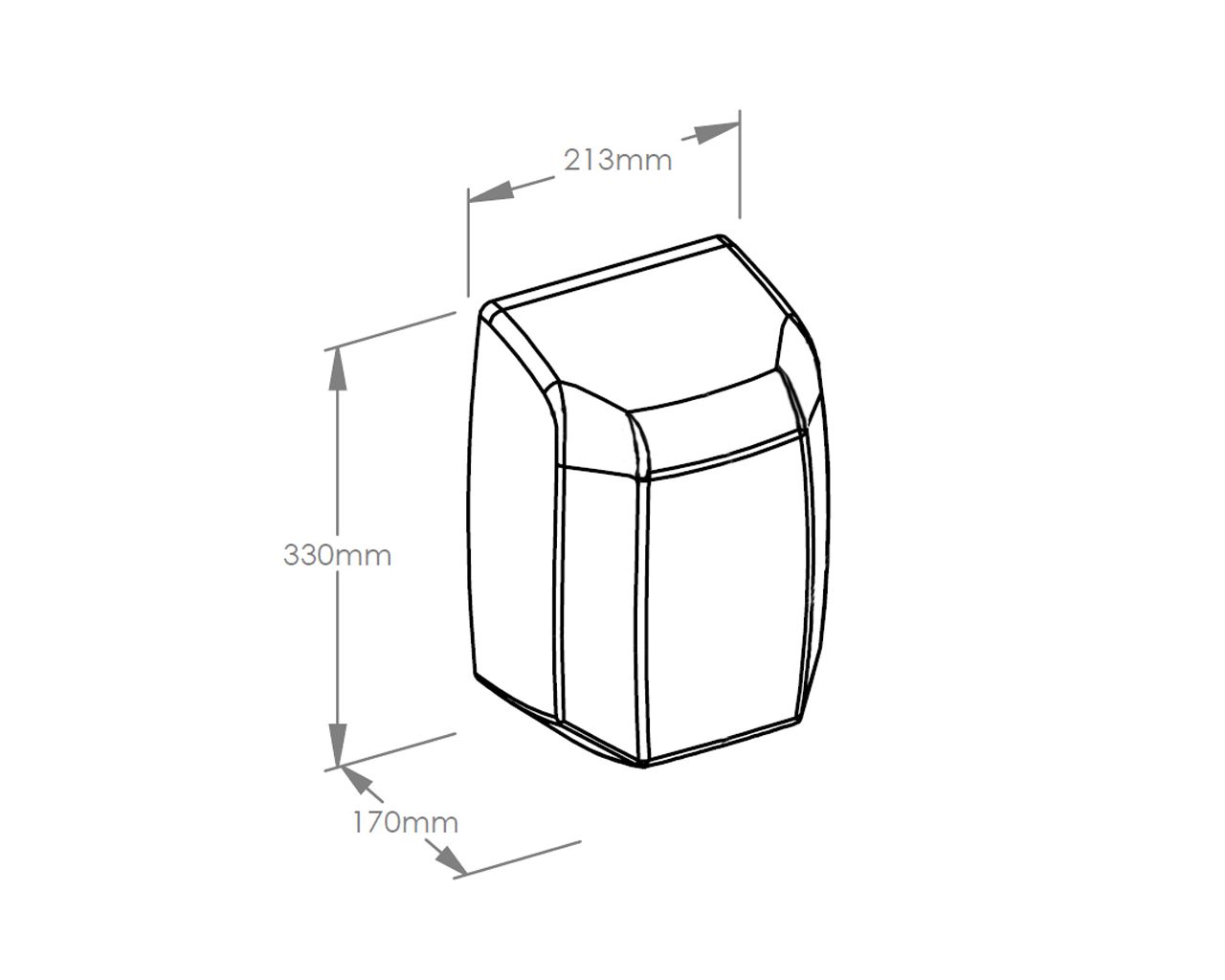

Technical parameters

material

matt steel

height

33 cm

width

21,3 cm

depth

17 cm

nominal power

420-1500 W

motor power

420 - 1100 W

heater power

110-400 W

power supply

220V-240 / 50Hz-60Hz

motor speed

19000 - 30000 r/min

power consumption

3,2 - 6,5 A

air temperature

35-45 ºC

Fire protection class

Class I

dry time

8-10 s

noise level

68-75 dB

air speed

190-480 km/h

Ingress Protection Rating

IP 23

operating airflow

2,93 - 3,16 m³/min

weight

5,1 kg
