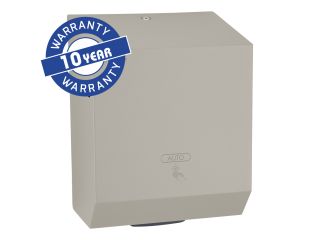

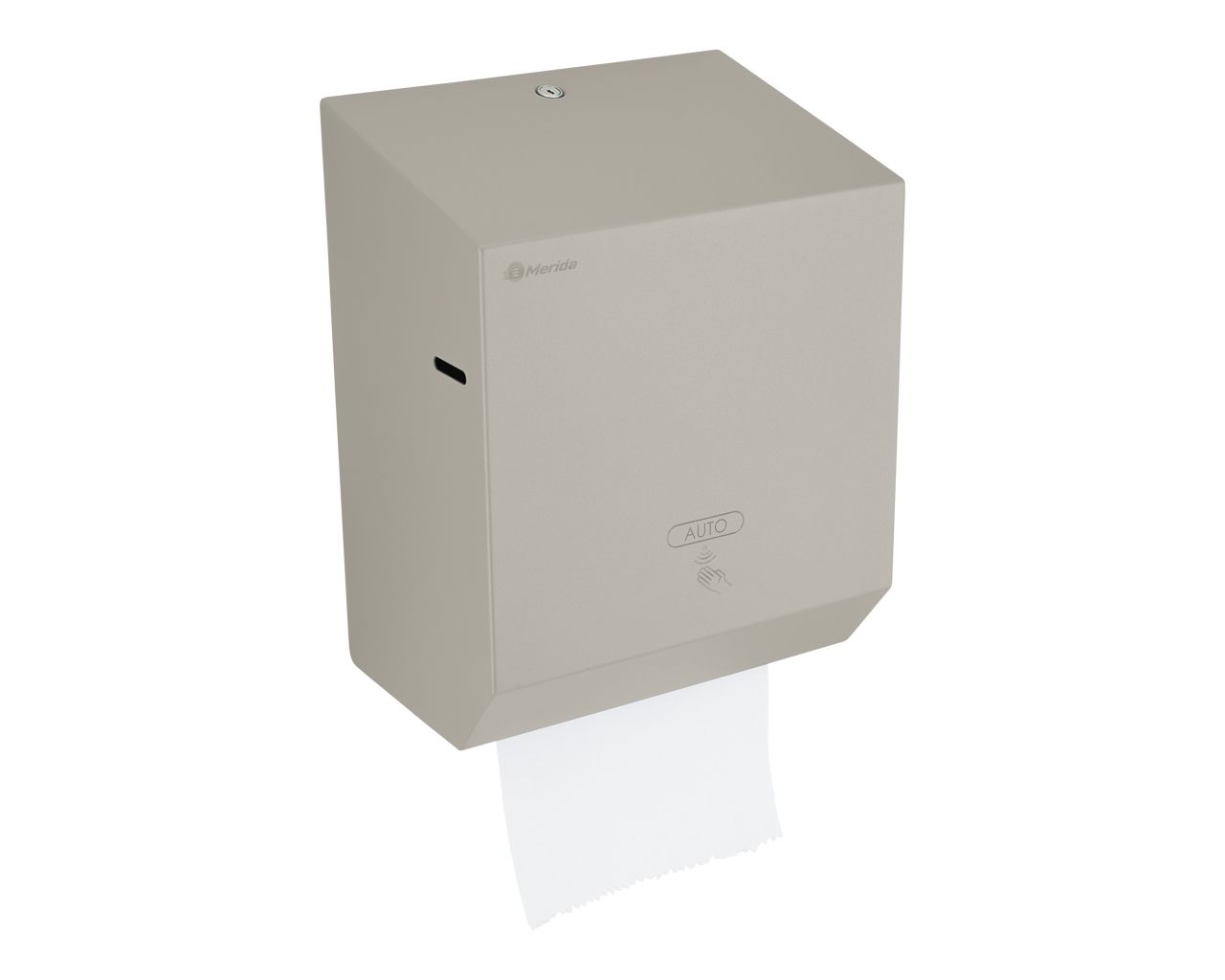

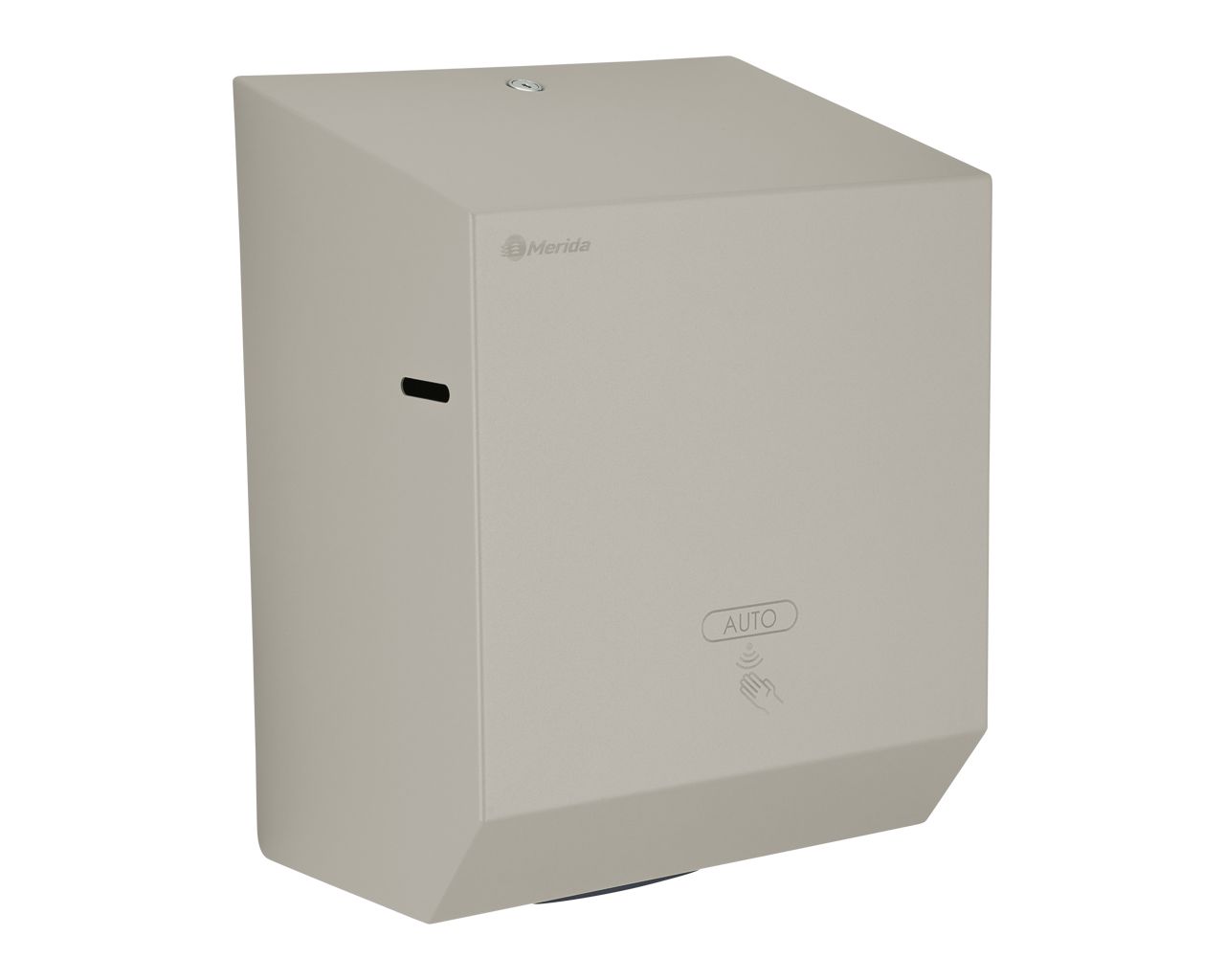

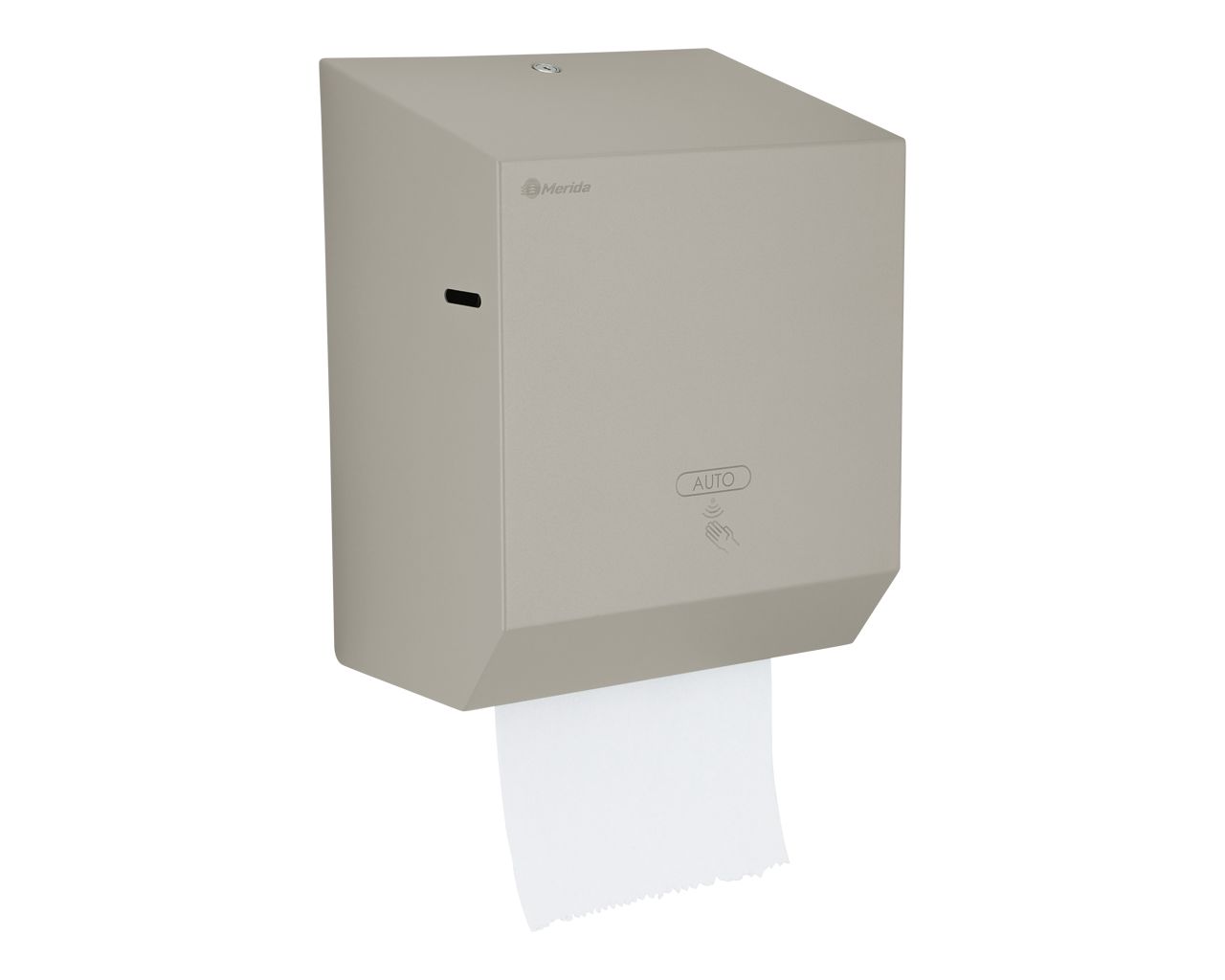

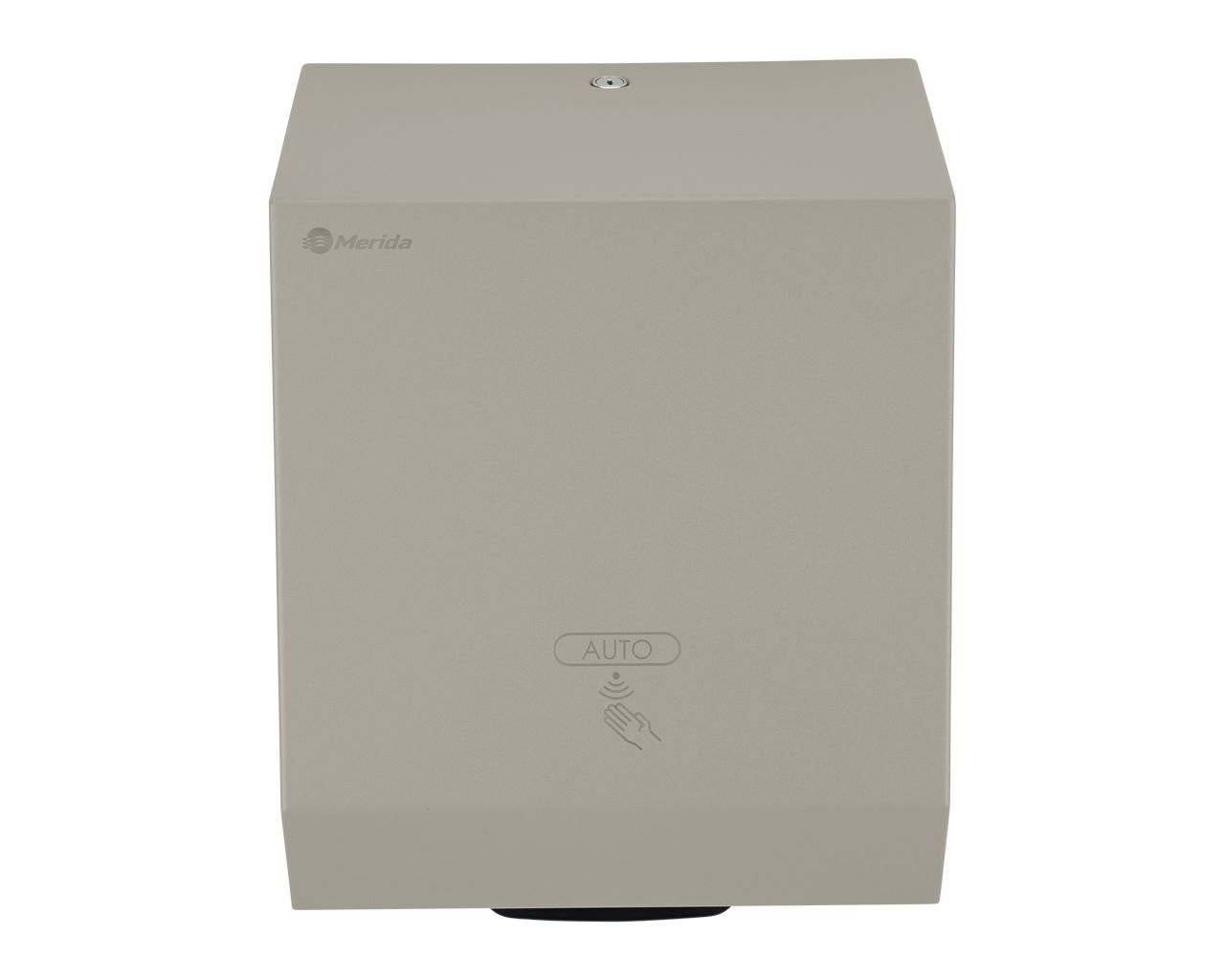

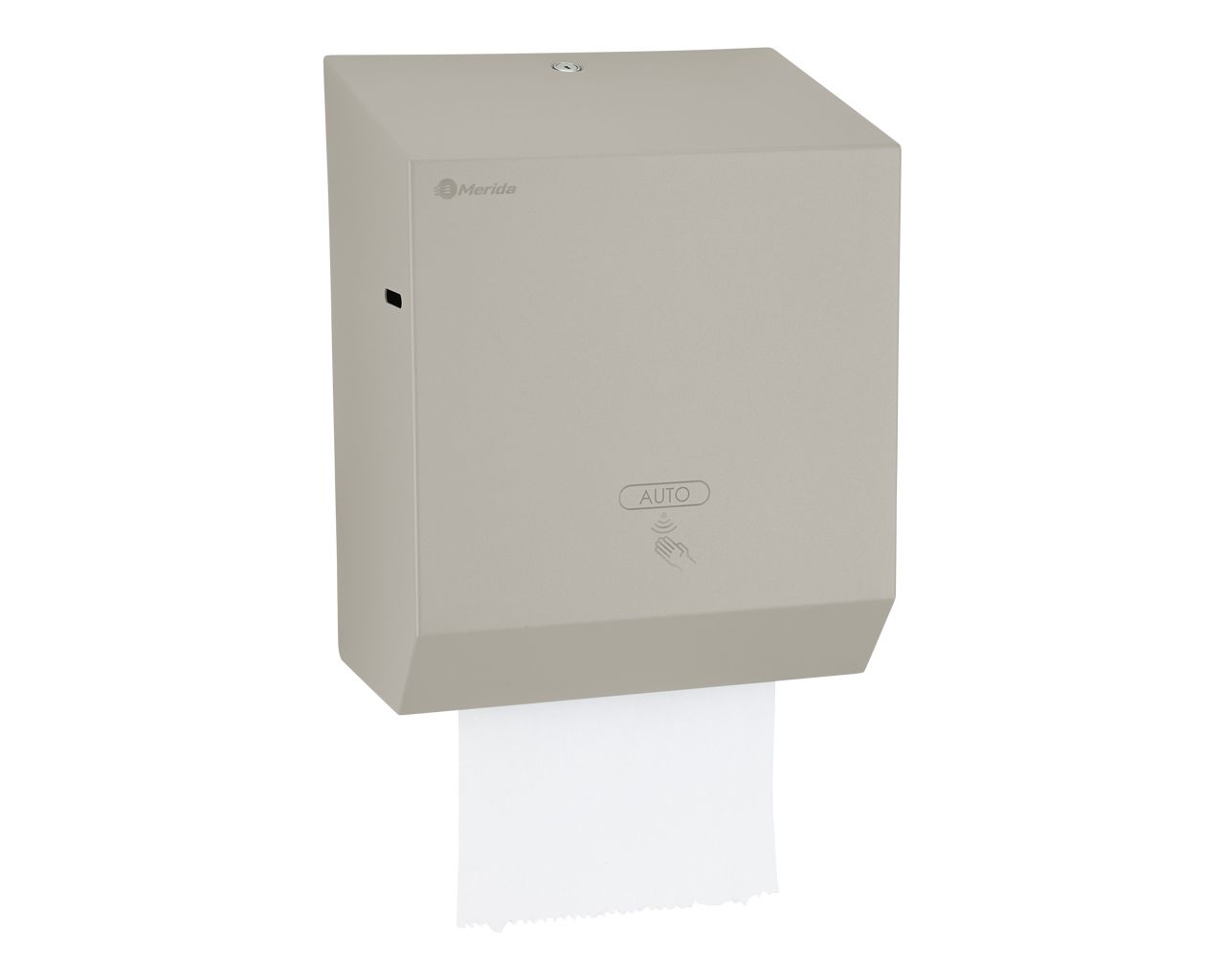

MERIDA STELLA AUTOMATIC STONE GREY LINE MAXI touch-free automatic roll paper towel dispenser, stone grey
symbol CSJ503
Description
10-year guarantee!
Touch-free automatic roll paper towel dispenser.
Ensures hygienic use - only the ejected towel is touched by the user.
The device operation is programmed via four switches on the control panel:
MODE - operation mode, two settings:
E - the device automatically dispenses another sheet after each towel is removed
H - the device dispenses another sheet of the towel after bringing your hands closer to the sensor at the bottom of the dispenser - in an emergency, the towel can be pulled out by pressing the PUSH lever located at the bottom of the dispenser
DELAY - to delay the ejection of the next towel sheet, three settings:
S - no delay
M - the next sheet is dispensed after 2 seconds
L - the next sheet is dispensed after 4 seconds
LENGTH - to set the length of the dispensed towel, three settings:
8 - 20.5 cm long towel sheet
10 - 25.5 cm long towel sheet
12 - 30.5 cm long towel sheet
RANGE - to set the distance at which your hands should be brought closer to the device to dispense the towel (refers to the MODE switch in the H position), three settings:
S - 8-9 cm from the dispenser
M - 10-11 cm from the dispenser
L - 12-13 cm from the dispenser
Powered by 4 x R20 batteries (batteries included) or the GEA525 mains adapter (sold separately). The mains adapter, hidden inside the battery compartment, can be connected directly to the electrical box behind the device. Easy loading of a new towel roll with the internal AUTO FEED button, for winding the paper on the rolls automatically. The roll holder has a system that makes it easy to load the towel. Access to the cutting mechanism enables trouble-free cleaning and maintenance of the device. The LED status indicator in the lower part of the dispenser: flashing blue signals the readiness for work; flashing red every 5 seconds signals the low battery level; steady red indicates discharged batteries; flashing red steadily signals a paper jam in the dispenser. What makes the device unique is that it can also be used in the event of power problems, e.g. discharged batteries or lack of power. In this case, the PUSH lever at the bottom of the dispenser saves the situation. The PUSH lever makes it possible to eject the towel sheets manually. This is only an emergency solution, which allows using the dispenser until it is fully functional again.
Made of stone grey-coated stainless steel; secured with a durable steel cylinder recessed lock; smooth welded edges and hidden hinges.
The maintenance of the guarantee requires following the cleaning instructions described in the Guarantee Terms and Conditions (to download) and using MERIDA AUTOMATIC towels.

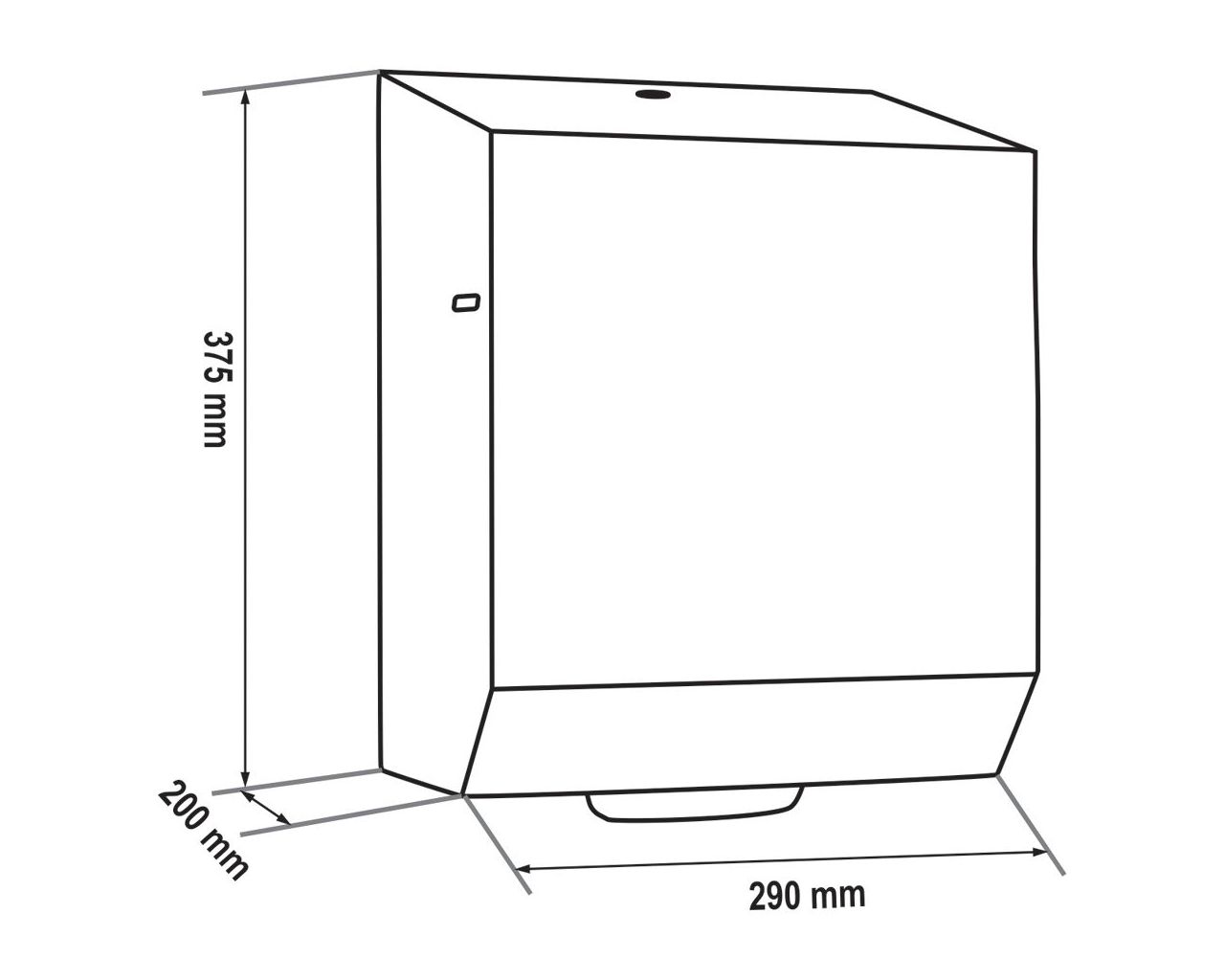

Technical parameters
height
37,5 cm
width
29 cm
depth
20 cm
