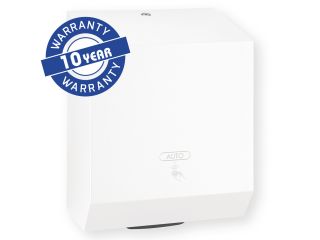

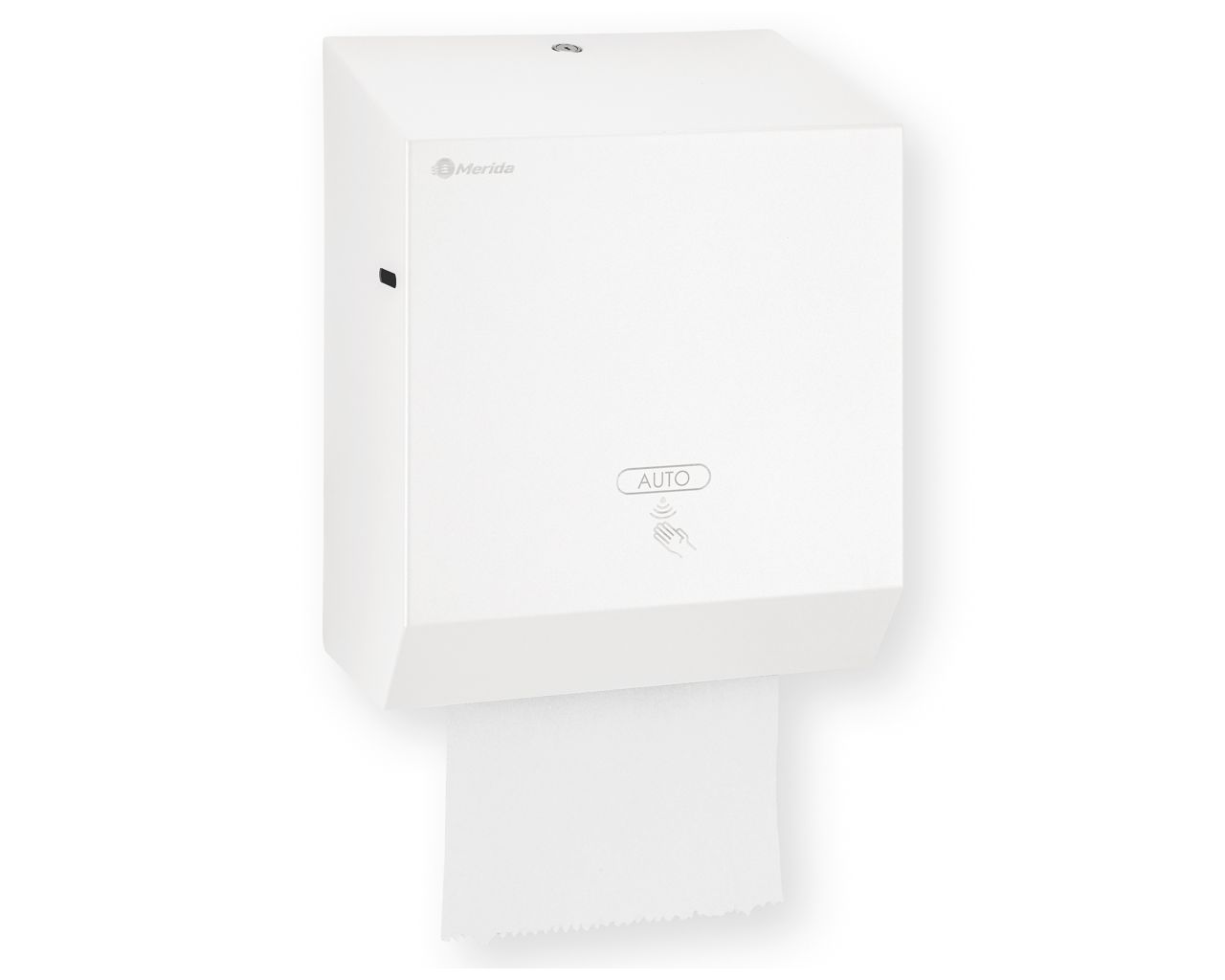

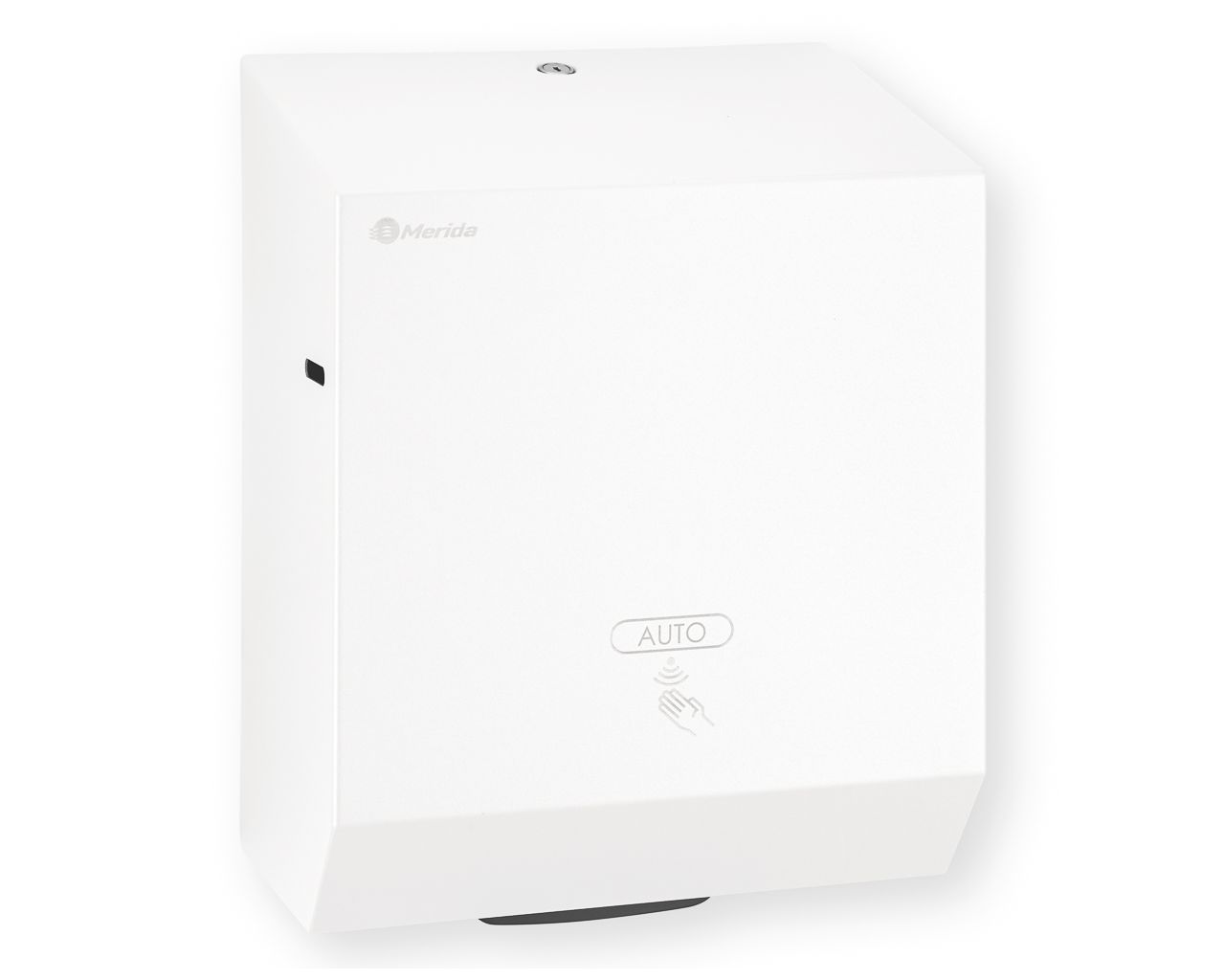

MERIDA STELLA AUTOMATIC WHITE LINE MAXI touch-free automatic roll paper towel dispenser, white

symbol CSB503

Show description


10-year guarantee!

We declare with full responsibility that the product is made of 304L stainless steel in accordance with the applicable construction and sanitary regulations under the following documents:

- Hygienic Certificate of Stainless Steel dated 27.06.2008 r. issued by Arcelor Mittal Stainless Europe based on the decision of the European Parliament No. 1935/2004 of 27.10.2004 and Directives No. 80/590/EEC and No. 89/109/EEC with an unspecified validity period.
- ISO 9001:2008 certificate; 14001:2004 with the number PL010150/P
- Hygienic Certificate BK/W/0801/02/2019, BK/W/0801/03/2019 issued by the National Institute of Hygiene (PZH)

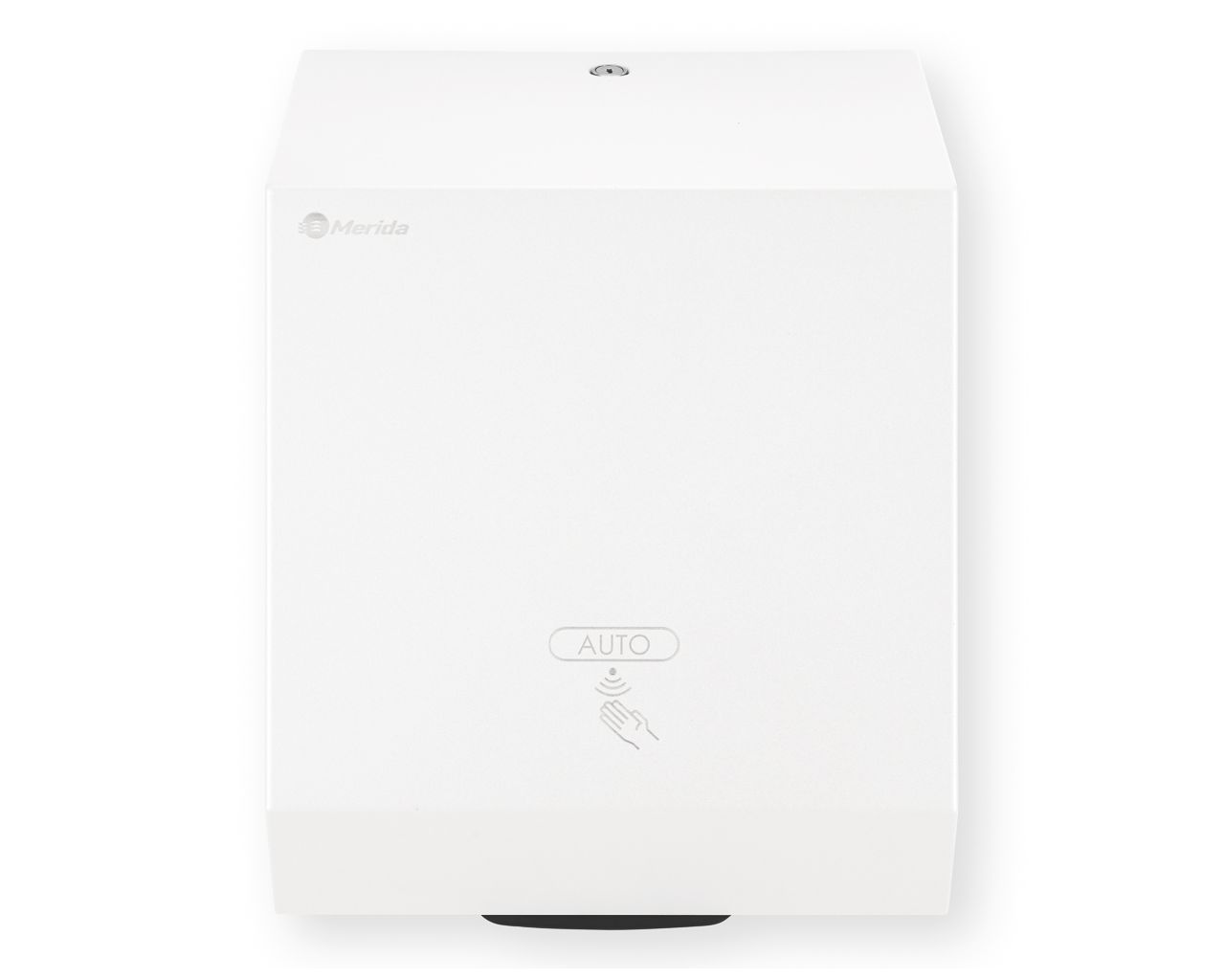

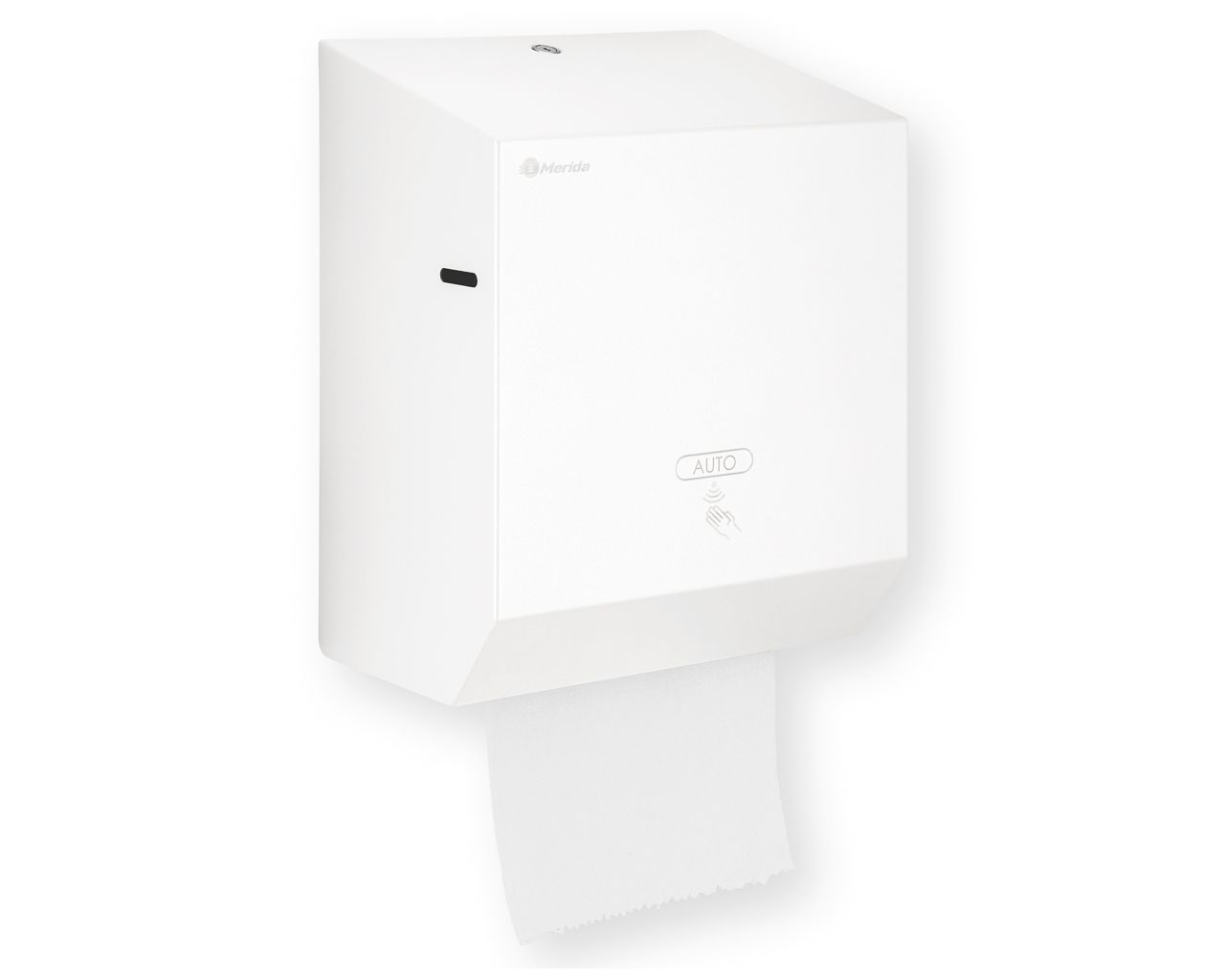

Touch-free automatic roll paper towel dispenser.
Ensures hygienic use - only the ejected towel is touched by the user.

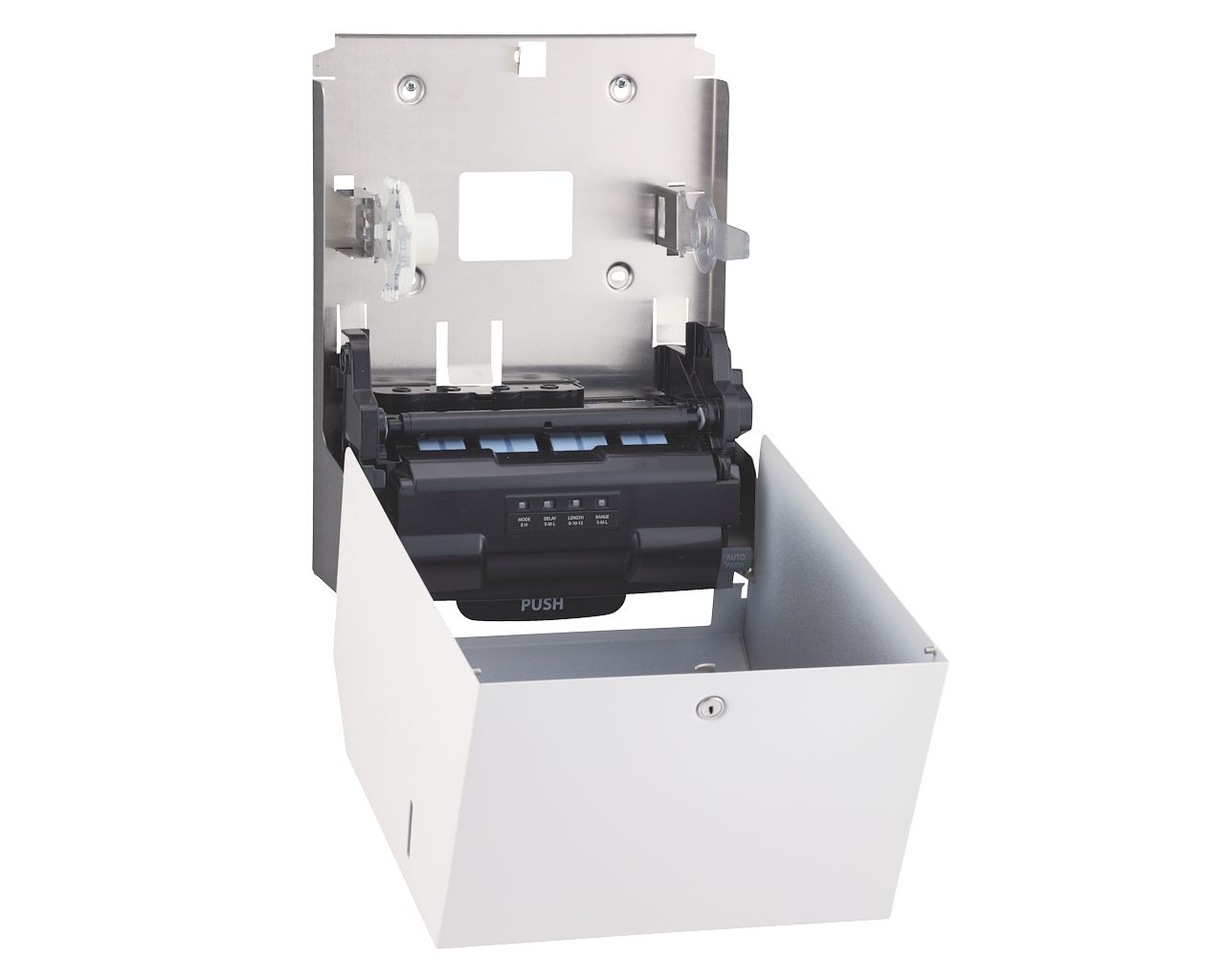

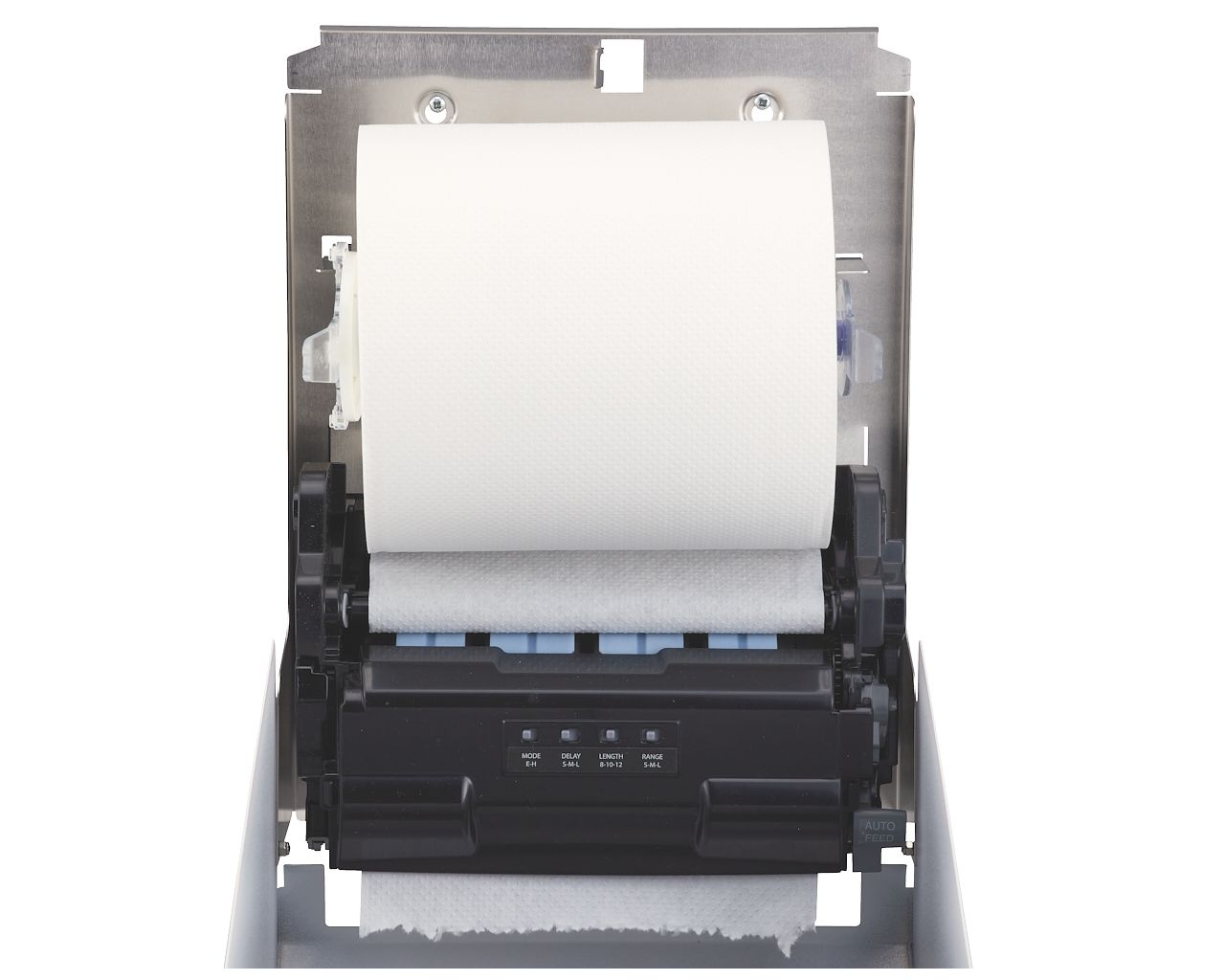

The device operation is programmed via four switches on the control panel:

MODE - operation mode, two settings:
E - the device automatically dispenses another sheet after each towel is removed

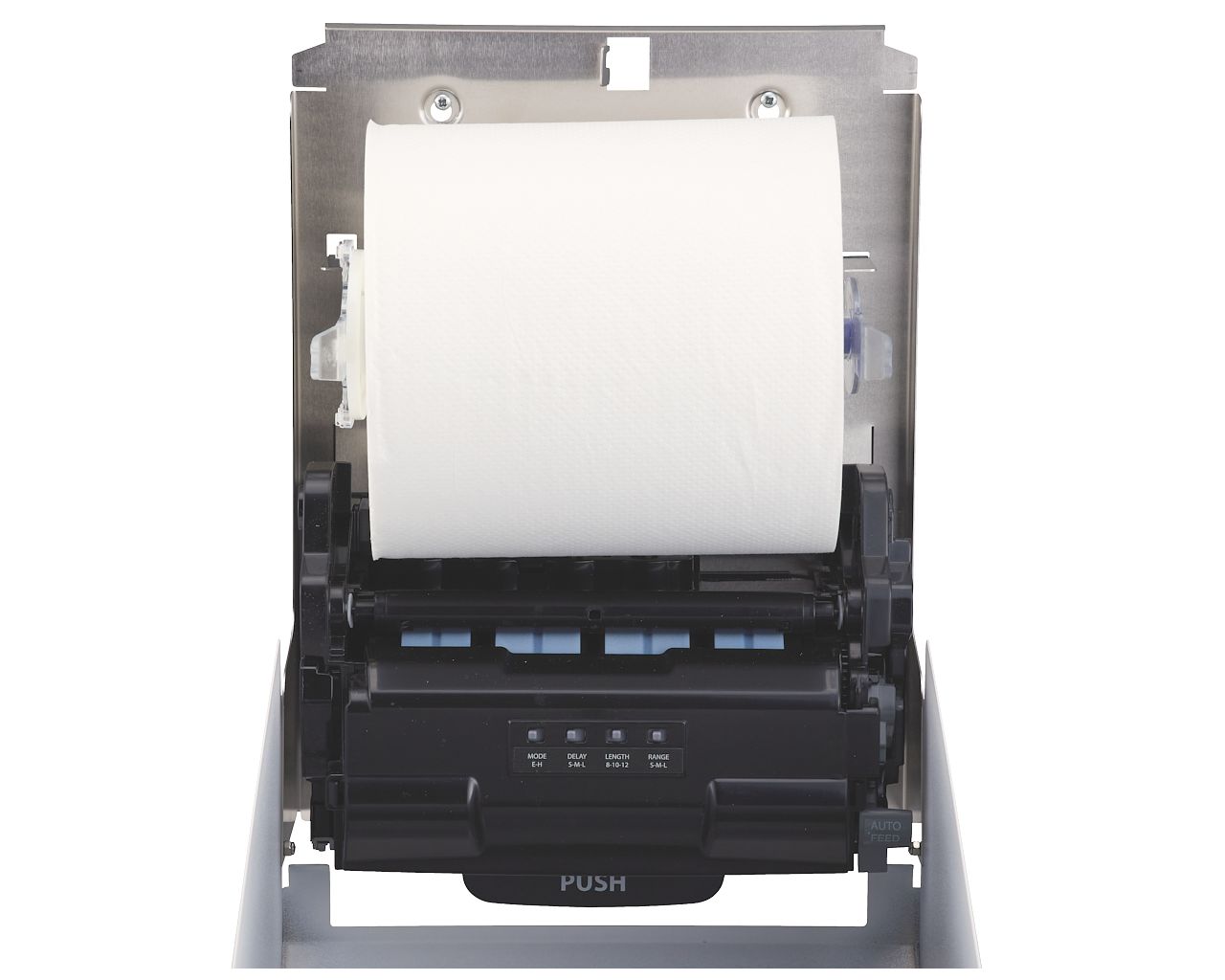

H - the device dispenses another sheet of the towel after bringing your hands closer to the sensor at the bottom of the dispenser - in an emergency, the towel can be pulled out by pressing the PUSH lever located at the bottom of the dispenser

DELAY - to delay the ejection of the next towel sheet, three settings:
S - no delay
M - the next sheet is dispensed after 2 seconds
L - the next sheet is dispensed after 4 seconds

LENGTH - to set the length of the dispensed towel, three settings:
8 - 20.5 cm long towel sheet
10 - 25.5 cm long towel sheet
12 - 30.5 cm long towel sheet

RANGE - to set the distance at which your hands should be brought closer to the device to dispense the towel (refers to the MODE switch in the H position), three settings:
S - 8-9 cm from the dispenser
M - 10-11 cm from the dispenser
L - 12-13 cm from the dispenser

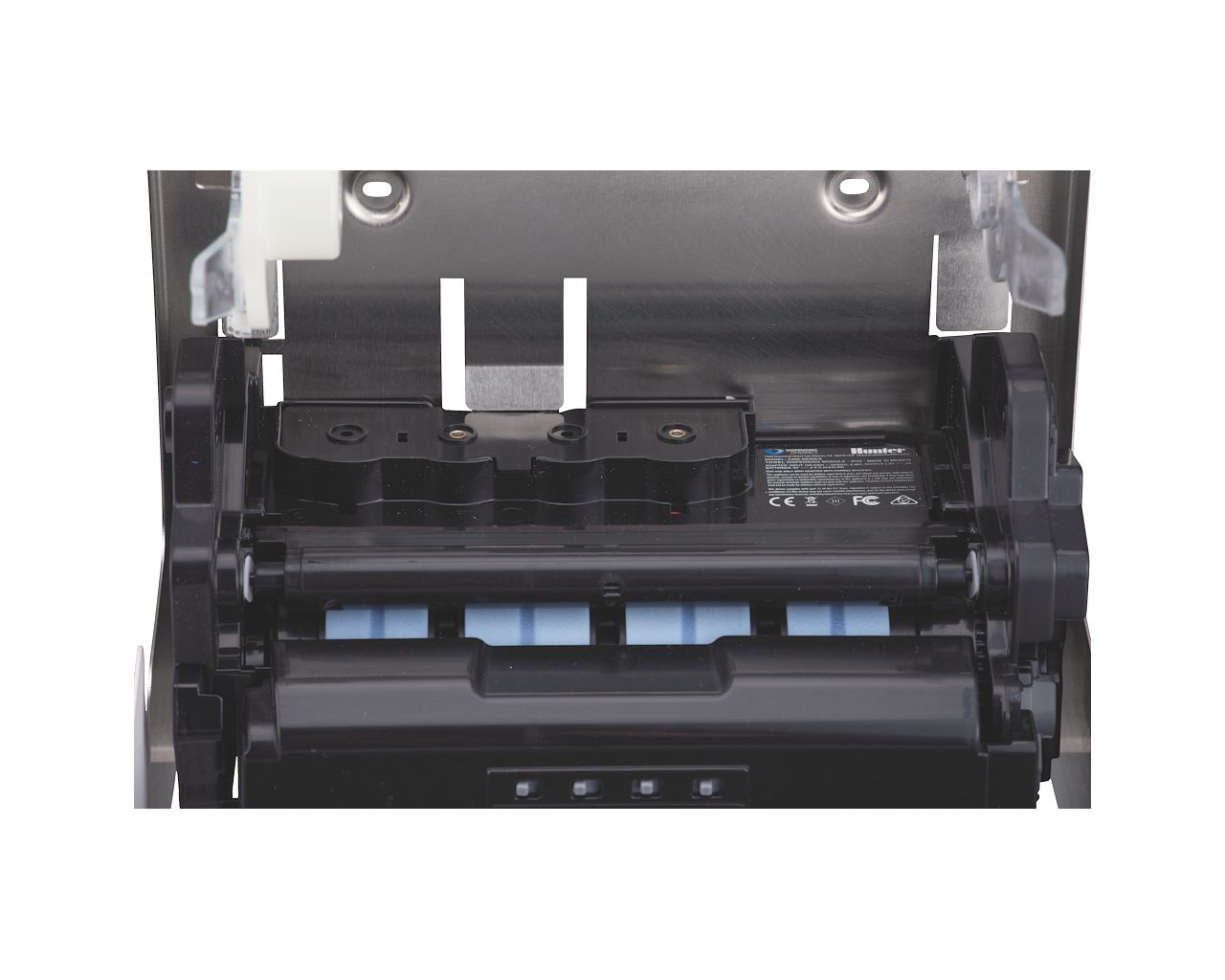

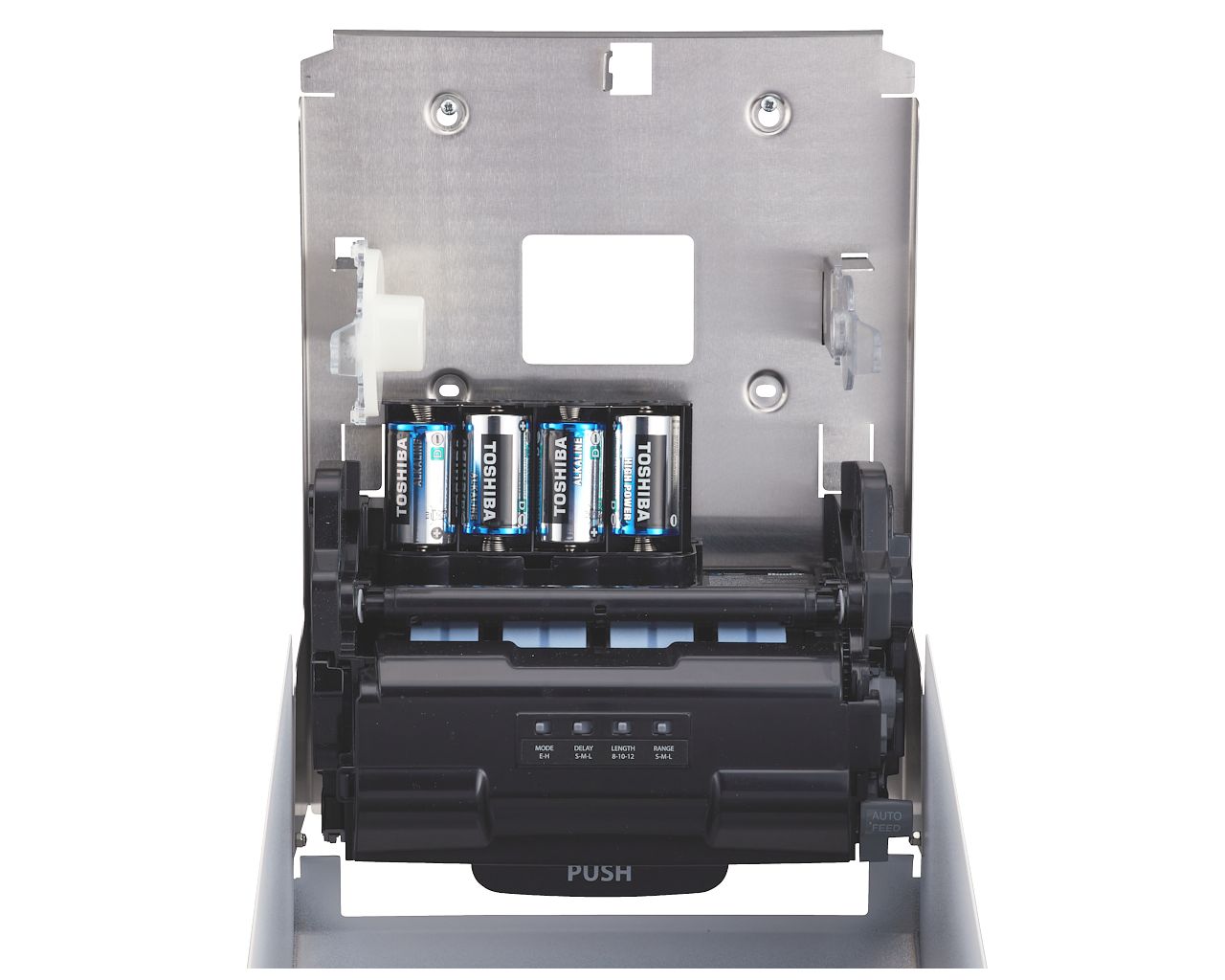

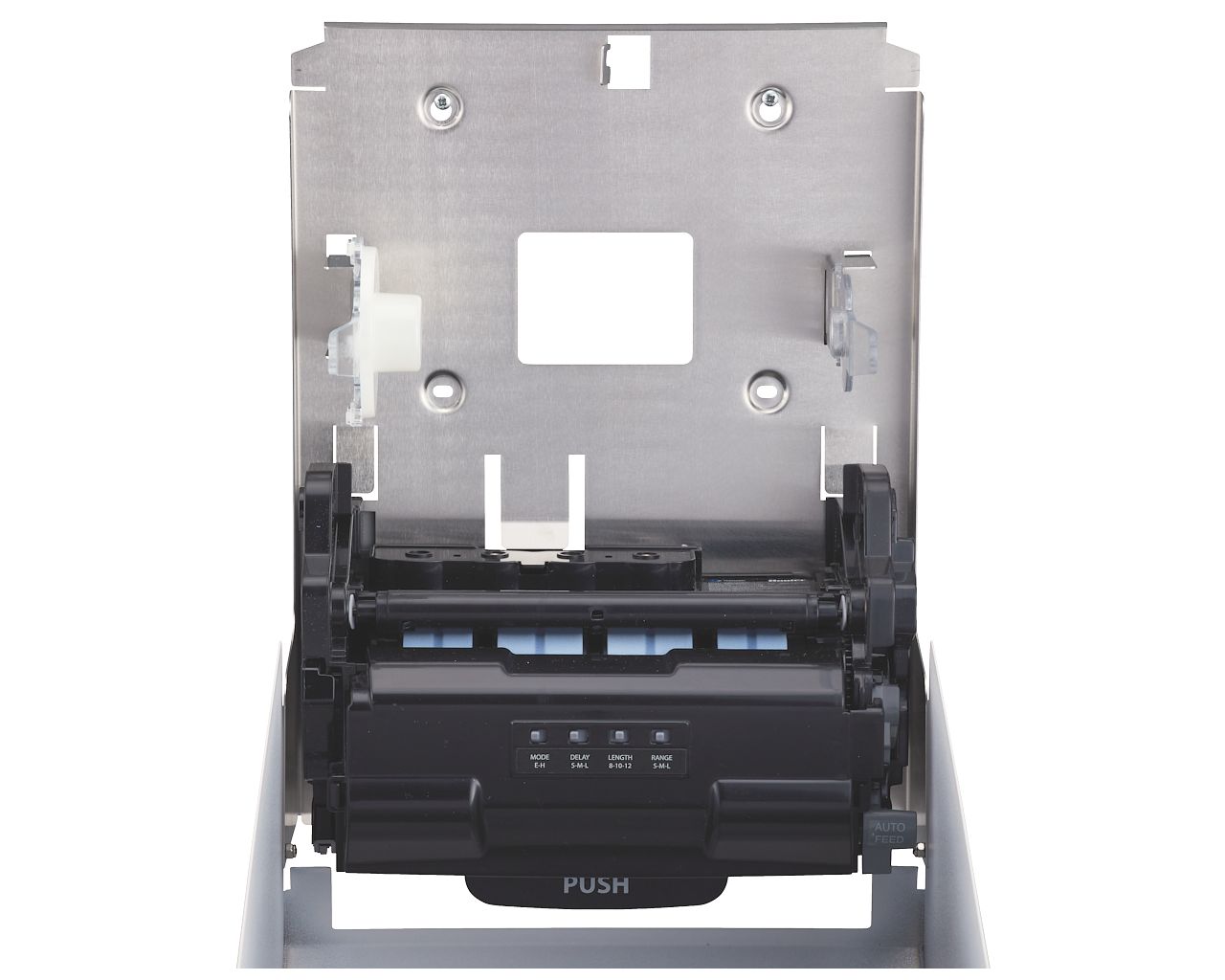

Powered by 4 x R20 batteries (batteries included) or the GEA525 mains adapter (sold separately). The mains adapter, hidden inside the battery compartment, can be connected directly to the electrical box behind the device. Easy loading of a new towel roll with the internal AUTO FEED button, for winding the paper on the rolls automatically. The roll holder has a system that makes it easy to load the towel. Access to the cutting mechanism enables trouble-free cleaning and maintenance of the device. The LED status indicator in the lower part of the dispenser: flashing blue signals the readiness for work; flashing red every 5 seconds signals the low battery level; steady red indicates discharged batteries; flashing red steadily signals a paper jam in the dispenser. What makes the device unique is that it can also be used in the event of power problems, e.g. discharged batteries or lack of power. In this case, the PUSH lever at the bottom of the dispenser saves the situation. The PUSH lever makes it possible to eject the towel sheets manually. This is only an emergency solution, which allows using the dispenser until it is fully functional again.
Made of white-coated stainless steel; secured with a durable steel cylinder recessed lock; smooth welded edges and hidden hinges.

The maintenance of the guarantee requires following the cleaning instructions described in the Guarantee Terms and Conditions (to download) and using MERIDA AUTOMATIC towels.


MERIDA AUTOMATIC paper towels: RAZ301, RAB310, RAE301, RAB309, RAN301, RAB320, RAN302, RAB312, RAB313, RAB301, RAB302

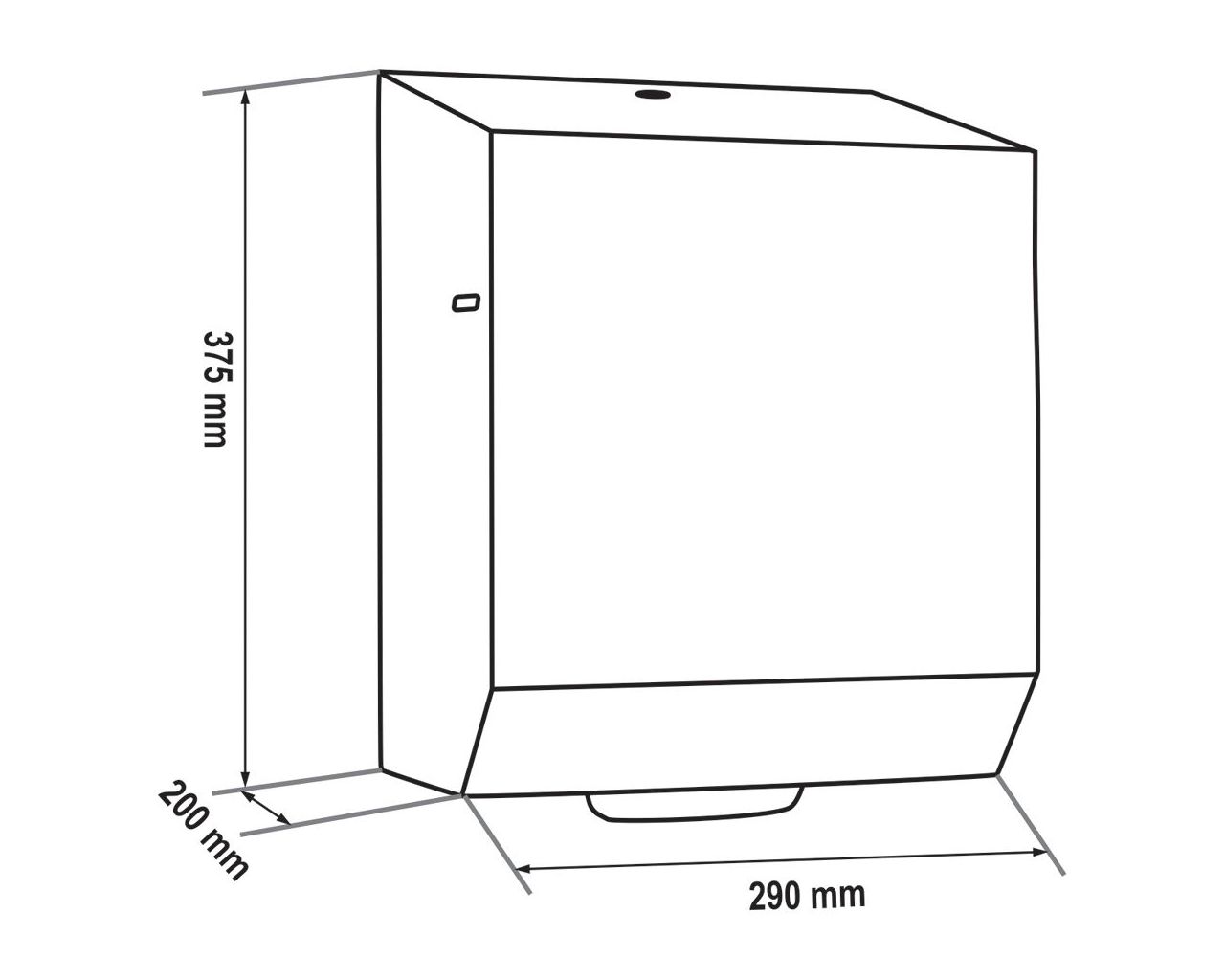

Technical parameters


37,5 cm


29 cm


20 cm
