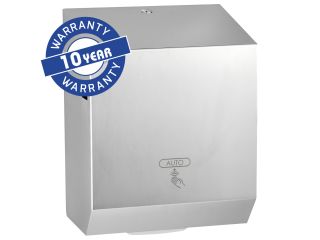

MERIDA STELLA MAXI automatic touch-free roll paper towel dispenser, brushed version

symbol CSM503

Show description


10-year guarantee!
The automatic touch-free dispenser of paper towels in rolls ensures hygienic use - only the ejected towel is touched.
Device operation programmed via 4 switches on the control panel:
MODE - operation mode switch, two settings:
E - the device automatically dispenses another sheet after each towel is removed
H - the device dispenses another sheet of a towel after bringing your hand closer to the sensor located at the bottom of the dispenser
- in an emergency, the towel can be pulled out by pressing the PUSH lever located at the bottom of the dispenser
DELAY - to delay the ejection of the next sheet of towel, three settings:
S - no delay
M - the next sheet is dispensed after 2 seconds
L - the next sheet is dispensed after 4 seconds
LENGTH - to set the length of the dispensed towel, three settings:
8 - 20.5 cm long sheet
10 - 25.5 cm long sheet
12 - 30.5 cm long sheet
RANGE - to set the distance at which you should bring your hands to the device to dispense the towel (applies to setting the MODE switch in the H position), three settings:
S - distance 8-9 cm to the dispenser
M - distance 10-11 cm to the dispenser
L - distance 12-13 cm to the dispenser
The towel dispenser is powered by four R20 alkaline batteries (batteries included) or the power supply. The power supply (not included) hidden inside the device, in the battery compartment, can be connected directly to the electrical box behind the device. Easy loading of a new roll with the internal AUTO-FEED button, automatically winding the paper on the rolls. The LED status indicator, located in the lower part of the dispenser, blinking blue, signals the readiness for work, blinking red, every 5 seconds signals low batteries, steady red indicates exhausted batteries, blinking red, signals a paper jam in the dispenser. Easy access to the cutting mechanism enables trouble-free cleaning and maintenance of the device. The towel dispenser is secured with a durable steel cylinder recessed lock. Smooth welded edges, hidden hinges. The housing and the backplate are made of stainless steel. Lockable with a key.

The maintenance of the guarantee requires following the cleaning and maintenance instructions described in the Guarantee Terms and Conditions (to download) and the use of MERIDA AUTOMATIC towels.

MERIDA AUTOMATIC paper towels: RAZ301, RAB310, RAE301, RAB309, RAN301, RAB320, RAN302, RAB312, RAB313, RAB301, RAB302

Technical parameters


37,5 cm


29 cm


20 cm

MERIDA STELLA MAXI automatic touch-free roll paper towel dispenser, brushed version
